Single-Phase Vertical Oil-Immersed Transformer: A Drawing-to-Handover Guide

The phrase doesn’t specify the additional duties of power distribution, the silicon steel core design, or the no-load loss guarantee. Those duties would be provided in the approved performance data, not in a finding based on a search term.

1. Vertical Definition Record: What Does “Vertical” Actually Mean?

Vertical means only what the controlled project records indicate; until those records define the mounting orientation, “vertical oil-filled transformer” remains a search label. In one request, the buyer may mean a tall tank. In another, the word may mean limited attitude, small footprint, a surface for mounting, or terminal orientation. None of those interpretations can be inferred from this keyword alone.

The standardized installation classes described by these sources are distinct. The public version of IEEE C57.12.20-2023 covers a defined overhead-type liquid-immersed distribution-transformer class, whereas IEEE C57.12.23-2018 covers a defined submersible single-phase class. These examples show that classification can have dimensional and mechanical meaning. They don’t show that a supplier’s use of the word “vertical” could mean either class.

Those numbers aren’t selection criteria. They show why the project must identify class and scope before a rule can be imported. An overhead-type standard scoped to 60 Hz cannot govern equipment with a different frequency, environment, rating, or installation method.

For a visual comparison of two commonly adopted standardized designs, Toplit’s presentation on the pad-mounted versus pole-mounted transformers is a better source to find the category. Don’t use either the pad-mounted or pole-mounted category as “vertical.”

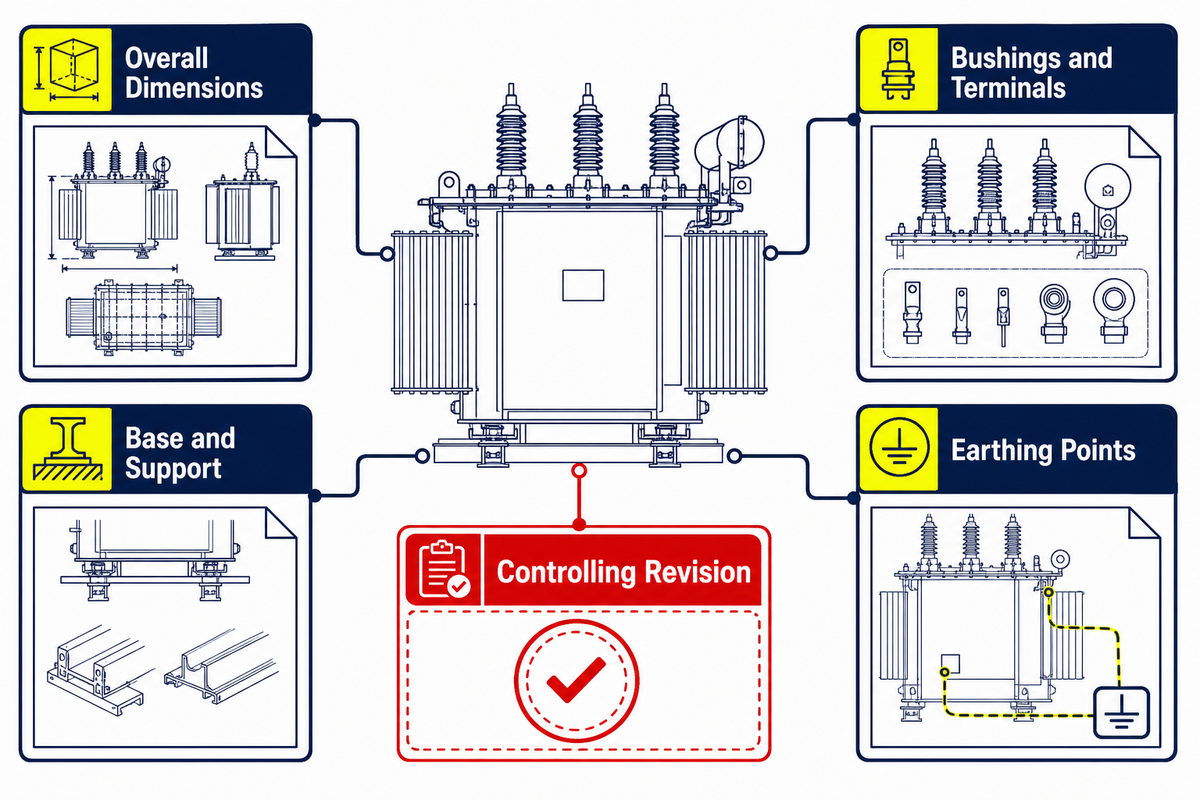

2. Approved Drawing Package: Which Record Controls Each Interface?

The name of the product starts the conversation. That conversation carries the equipment class and vertical definition from the first record into a controlled drawing package. Approved documents control the project review. A drawing can be coordination, approved for fabrication, modified from comments, or can be an official record. Calling all four “the drawing” creates confusion and impacts everyone working on the drawing differently.

“applies to three-phase and single-phase power transformers”

The IEC 60076-1:2011 public page confirms a broad transformer scope. However, it does not inform the project which terminal face, base detail, or arrangement of accessories was selected. These are submittal questions.

A Town of Apex transformer specification requests outline information for overall dimensions, weight, bushings, and terminal information. The IEEMA transformer drawing manual addresses dimensions, foundation/fixing information, terminal information, revisions, and dates. The force of these clauses varies from project to project, though the document logic is useful: records and revisions for this information are required to assign review and ownership.

When the interface package is completed and the task becomes a product fit, revisit Toplit’s project-specific solutions page. This is the space for commercial configuration, not a second, almost identical blog.

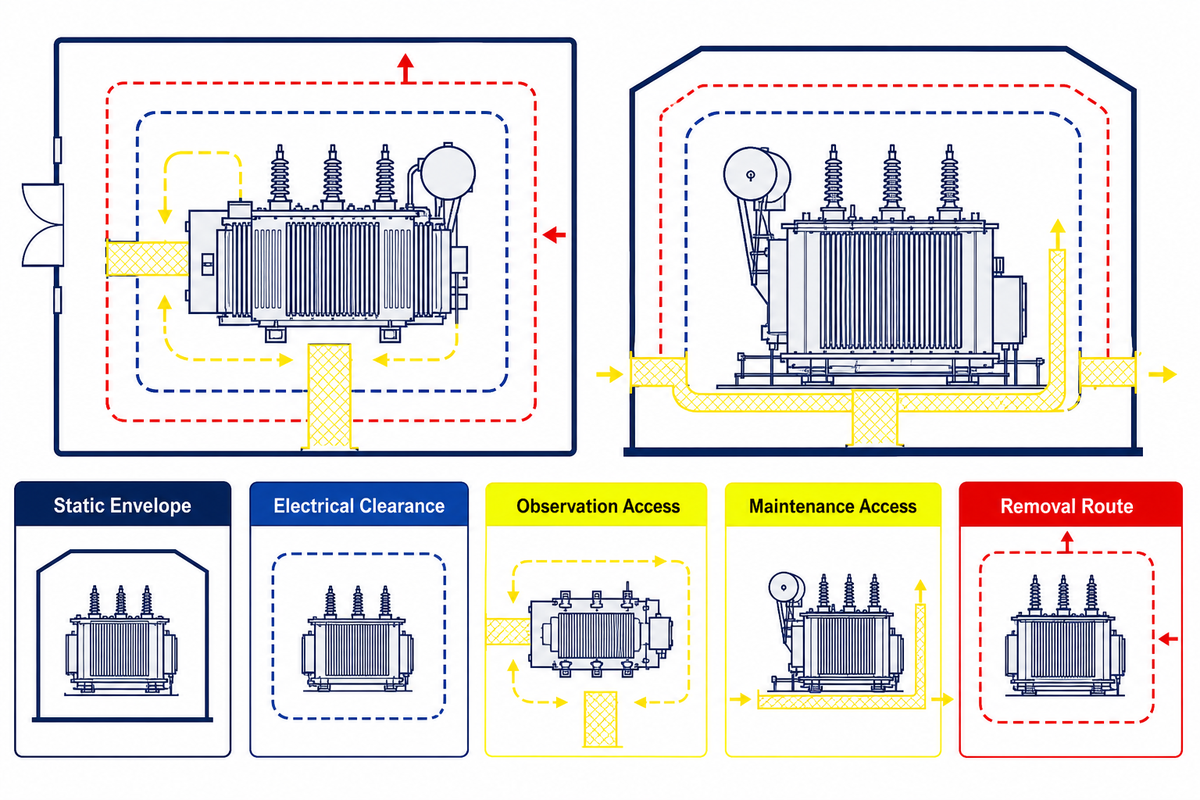

3. Envelope, Clearance, Access Matrix: Why “It Fits” Is Not Enough

The equipment envelope is the maximum physical space occupied by an installed unit and its protrusions. Once the controlling drawing is known, the next task is to separate physical envelope, electrical clearance, and service access instead of treating them as one fit check. Electrical clearance is the space set by the approved design and the rules. Service access is the space and route needed to observe, operate, inspect, remove, or replace something. One dimension can’t be used to represent the other two dimensions.

A universal value for clearance isn’t provided here because the correct value is some combination of the class, voltage, terminal configuration, environment, ownership, and the jurisdiction. A matrix that doesn’t guess the value is useful; it leaves a space for the value, its source, the revision, and the approver.

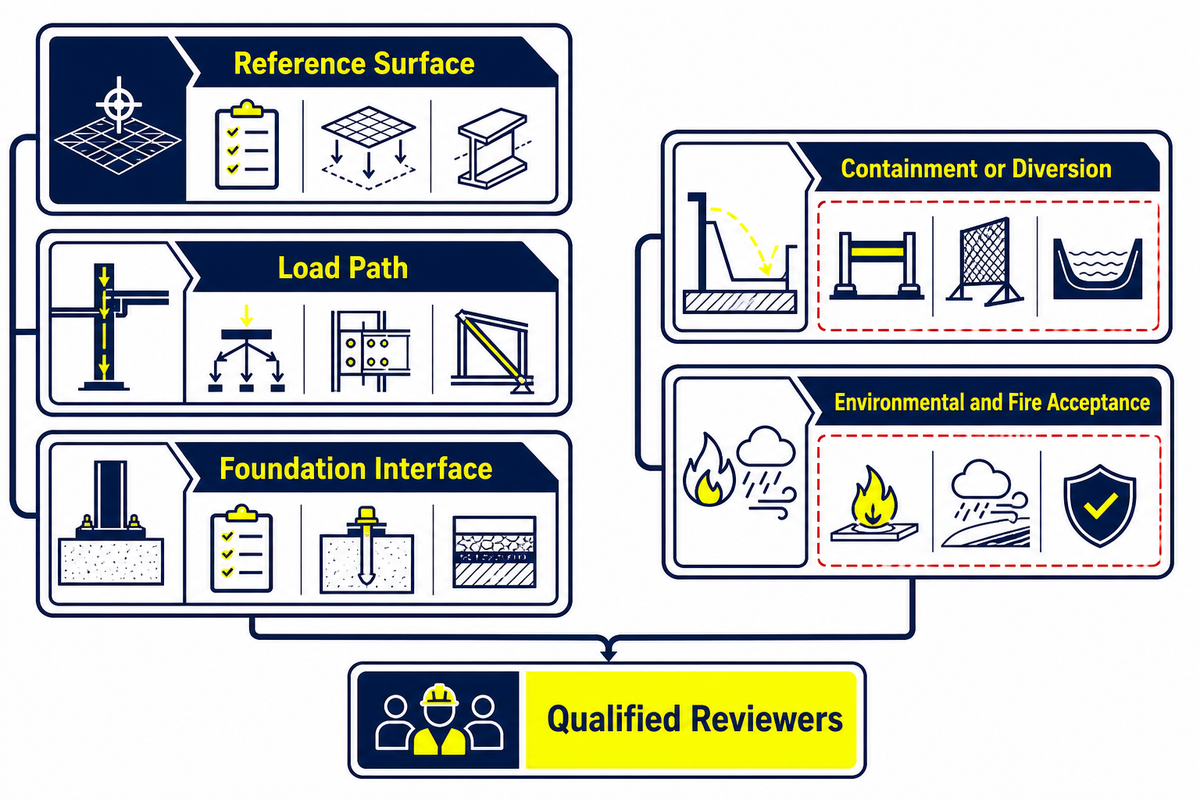

4. Support, Foundation, and Environmental Interface: What Must Be Proven?

The reference surface and load path are the starting inputs. Those inputs extend the preceding envelope review into the foundation, supports, and site environment. These are the supports and fixing pattern for the equipment’s operating position and mass. The project may specify loading cases that differ from the support positions. If equipment loads transfer through those supports, a mismatch is a structural-interface issue, not a matter for field improvisation.

Keep structural acceptance separate from environmental and fire acceptance. In the United States, the EPA’s SPCC guidance for qualified oil-filled operational equipment creates a conditional containment or diversion question. It doesn’t make every transformer subject to one detail, and it doesn’t turn a gravel bed into an automatic solution. Facility scope, oil capacity, plan applicability, fire strategy, drainage, local requirements, and the authority having jurisdiction still matter.

For typical applications of electrical distribution, refer to Toplit’s distribution transformer specification guide. Use the guide to aid in developing questions and not to completely revise the project’s approved structural or environmental design.

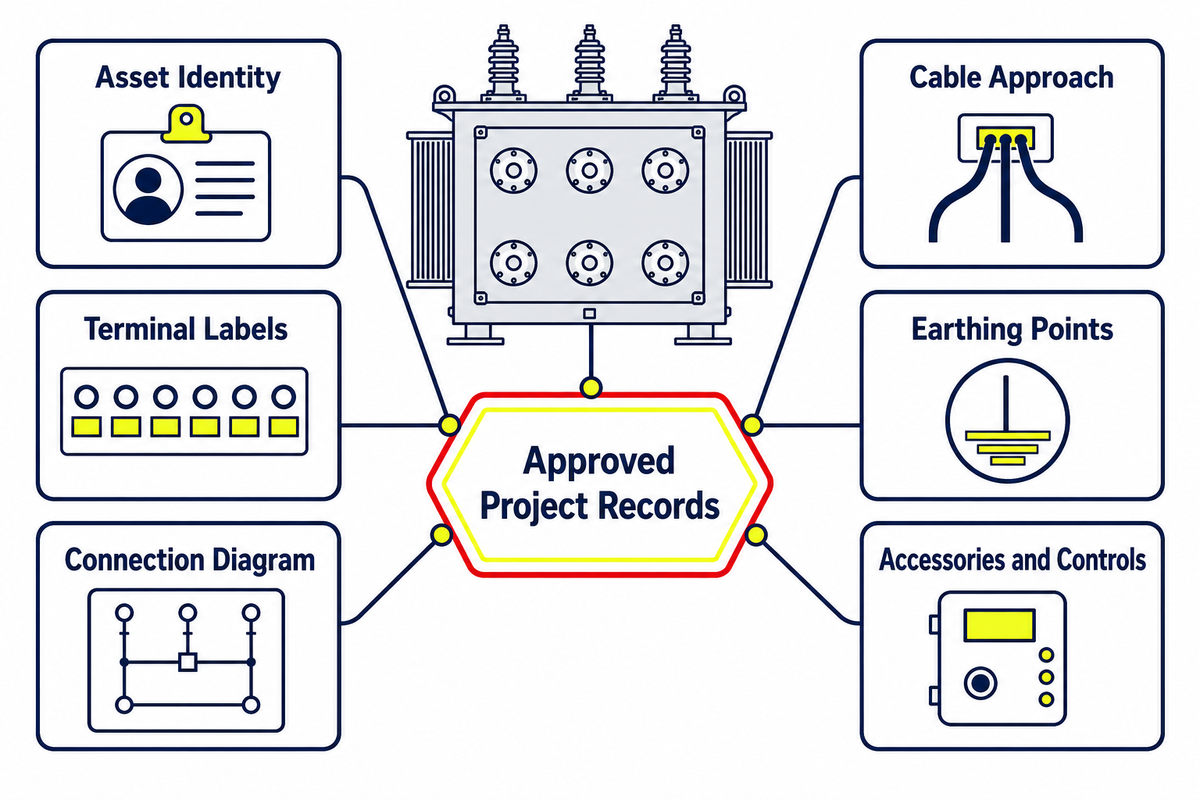

5. Terminal, Cable, and Earthing Interface Register: Which Items Need Closure?

Although a generic wiring diagram may be useful during the planning phases of the project, it can’t authorize field connections. This electrical review follows the mechanical and environmental interface review; it doesn’t replace either one. The project requires unit identity, nameplate data, the approved connection diagram, terminal or bushing labels, phase/polarity information, where applicable, approach of the cable, conductor support, earthing interfaces, accessories, and the applicable work procedure.

The rules of electrical safety are dependent on the type of work and the type of installation. The approved bushing arrangement and cable clearance belong in the same interface register, but they don’t authorize energized work. The OSHA electric-power eTool scope mentions that 1910.269 outlines the operations and maintenance activities associated with the defined generation, transmission, and distribution of electric power and excludes construction work. Other requirements may apply in the case of non-US projects, construction work, or the premises wiring. The governing branch is to be determined by the employer and authority having jurisdiction.

6. Receiving Evidence Chain: What Should Travel With the Delivery?

At receiving, the contractual identity is matched to the physical unit. The terminal and earthing records from the prior review now become part of that identity check. The objective isn’t to analyze the transformer at the gate. The objective is to retain a traceable record of what arrived, which documents describe it, what was observed, and which exceptions remain open.

A defensible record associates the purchase or asset identifier, nameplate, approved drawing revision, packing list, accessory list, visible package and equipment conditions, noted transport indicators, photographs, date, location, and reviewer. That receiving inspection record should preserve identity and condition without claiming a field diagnosis. A photograph without asset identity or date may show damage, but can still fail to prove which unit, event, or stage it’s associated with.

NETA World Journal’s discussion of factory acceptance and field commissioning tests states that factory records should be certified and comparable field records should be available after transport. Since test results may be produced under different conditions and configurations, it’s important to capture the test setup with the result.

This public guide doesn’t address lifting and rigging. Use the manufacturer’s handling instructions for the actual unit together with a qualified lifting plan that addresses the route, lifting points, unit mass, center of gravity, and installed accessories. Lifting methods can’t be assumed from the words “vertical” or “tank-shaped.”

For background on company manufacturing and contact information, see the company profile of Jiangsu Toplit Electric. This is company background; it isn’t evidence that the specific transformer unit passed a project-specific test or acceptance step.

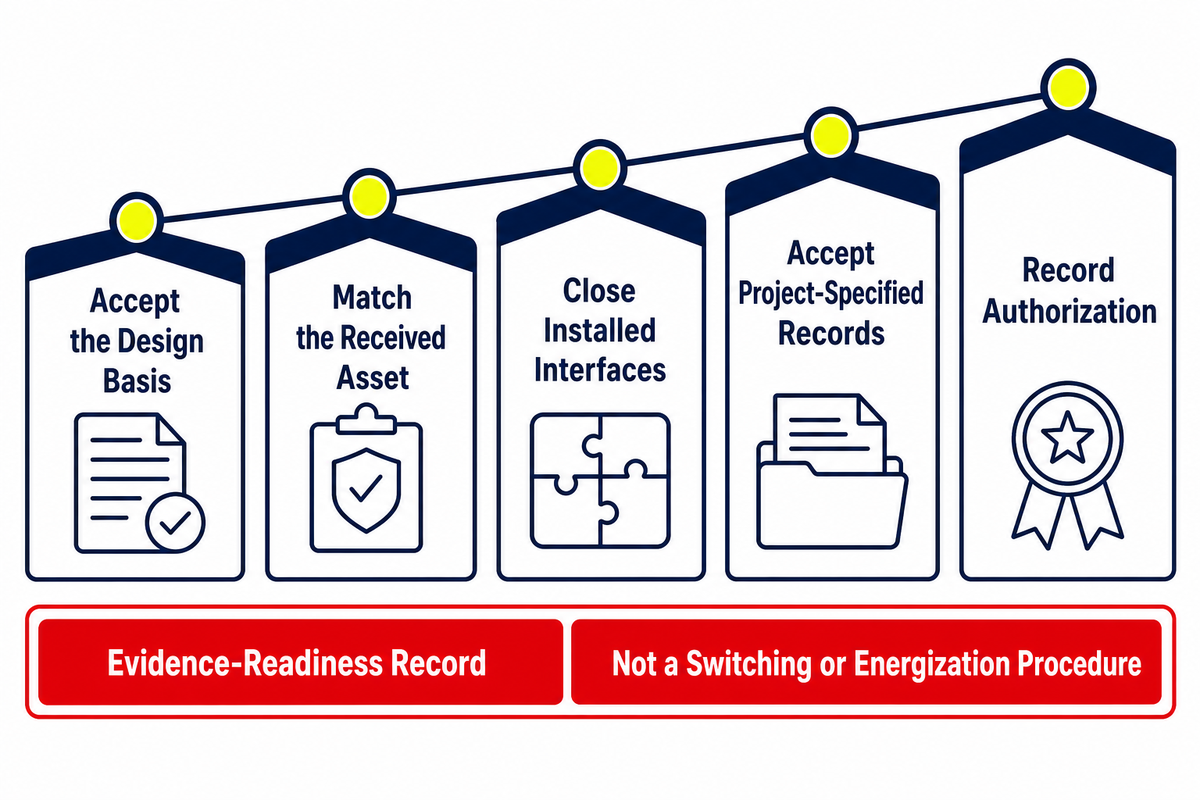

7. Drawing-to-Energization Evidence Ladder: What Belongs in the Pack?

A pre-energization pack is an evidence-readiness record. Pre-energization checks connect the approved design, received identity, installed interfaces, exceptions, and named authorization path without replacing the project procedure. It isn’t a public switching, isolation, connection, testing, oil-treatment, or energization procedure. The qualified team determines the actual steps, methods, limits, acceptance criteria, and authorization.

1. Accept the design basis – identify the equipment class, applicable standards/editions, approved drawings, specifications, and resolved comments.
2. Match the received asset – reconcile identity, nameplate, accessories, shipment condition, and exceptions with the approved package.
3. Close installed interfaces – record acceptance of support, access, environmental/fire, terminal, cable, earthing, and control interfaces by their named owners.
4. Accept project-specified records – attach the qualified team’s inspections, tests, configurations, results, deviations, and reviewer sign-offs under the project procedure.
5. Record authorization – close or formally disposition exceptions and capture the owner-authorized decision path before energization.

The word “accepted” must nominate an authority. The manufacturer can confirm if supplied design information is correct. The designer can accept the design interface. The installer can document the completion of installation. A test organization can produce a report. The owner can issue the final approval. One party’s signature doesn’t imply that they’ve accepted the responsibilities on behalf of the other parties.

The safety boundary is strict. OSHA’s de-energizing guidance states that equipment should be treated as being de-energized if and only if all the requirements are satisfied; otherwise, the energized-work requirements apply. This source is general, but the editor’s emphasis is universal: a document titled “checklist” can’t create a safe state.

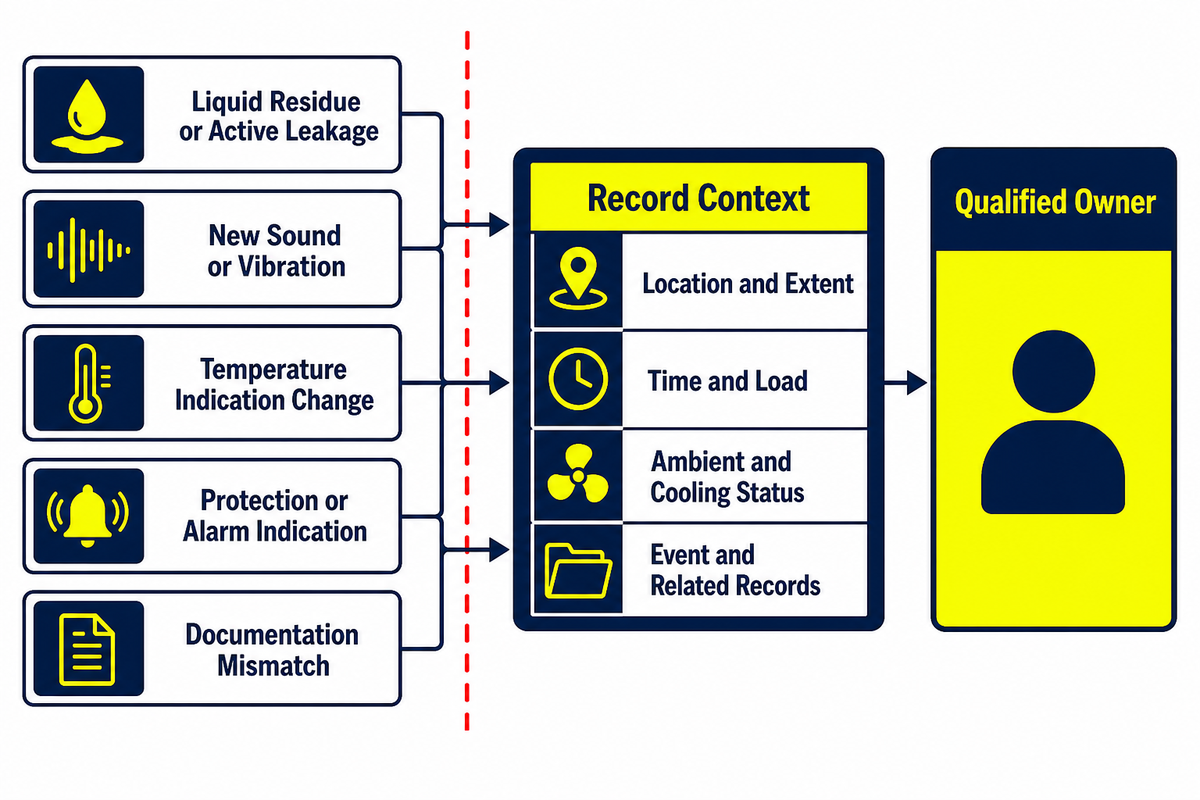

8. Observe, Record, Escalate Matrix: How Should Operating Changes Be Handled?

Observing a situation isn’t the same as making a diagnosis. When a leak, a sound, a change in temperature, an alarm, or a physical mark is observed, that observation must be placed in context by noting time, place, equipment identity, load and ambient conditions, associated indications, recent work and events, relevant photographs, the prevailing situation, and the source or criterion against which the situation is accepted. Then, follow the owner’s escalation procedure.

This matrix doesn’t give a universal control algorithm or field remediation. If safety, environmental, or equipment concerns arise, follow the site-specific emergency procedures and the qualified-person response process. For general oil, cooling, construction, and condition-state signals, refer to Toplit’s oil-immersed transformer fundamentals guide.

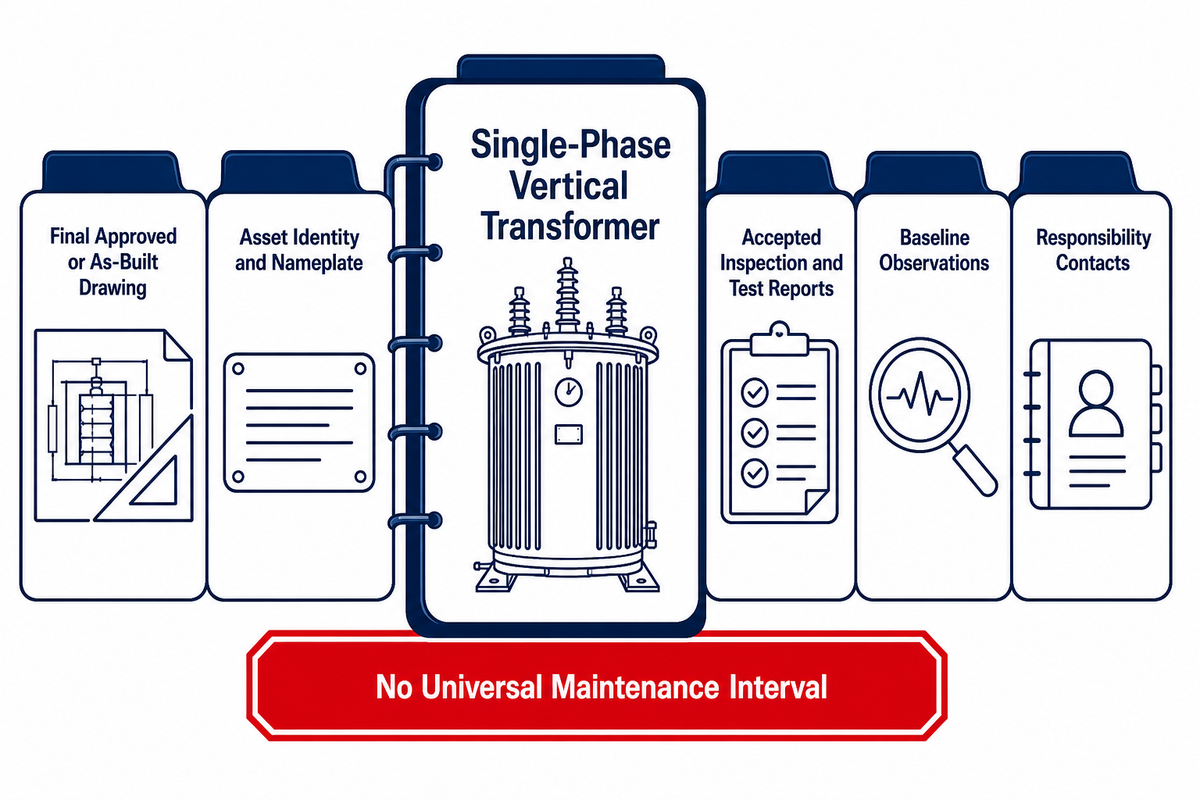

9. Maintenance Handover File: Which Records Retain Value?

A handover file should enable the subsequent owner to answer what was finally installed, what established the accepted baseline, and who’s responsible for the next decision. It carries the preceding observation record forward as a baseline, not as an isolated maintenance note. The handover file should contain the final approved or as-built drawing revision, asset identity and nameplate records, manufacturer’s instructions, accessory records, accepted inspection and test reports, exceptions or waivers, photographs, baseline observations, and responsibility contacts.

Results must be kept with configuration. A reading—whether a measurement, observation, or test—has value only if the sample-point location, fluid condition, temperature, and test parameters are known. The same principle should apply to photographs and inspection forms.

Don’t set a universal maintenance interval. Each maintenance decision should point to the approved source, current condition evidence, and responsible owner. Applicable manufacturer instructions, owner program information, service conditions, tests performed, fluid system, accessories, applicable standard, and jurisdiction can all affect the maintenance window. Handover should document the approved source for each interval and acceptance limit, rather than just copying a maintenance schedule from the internet.

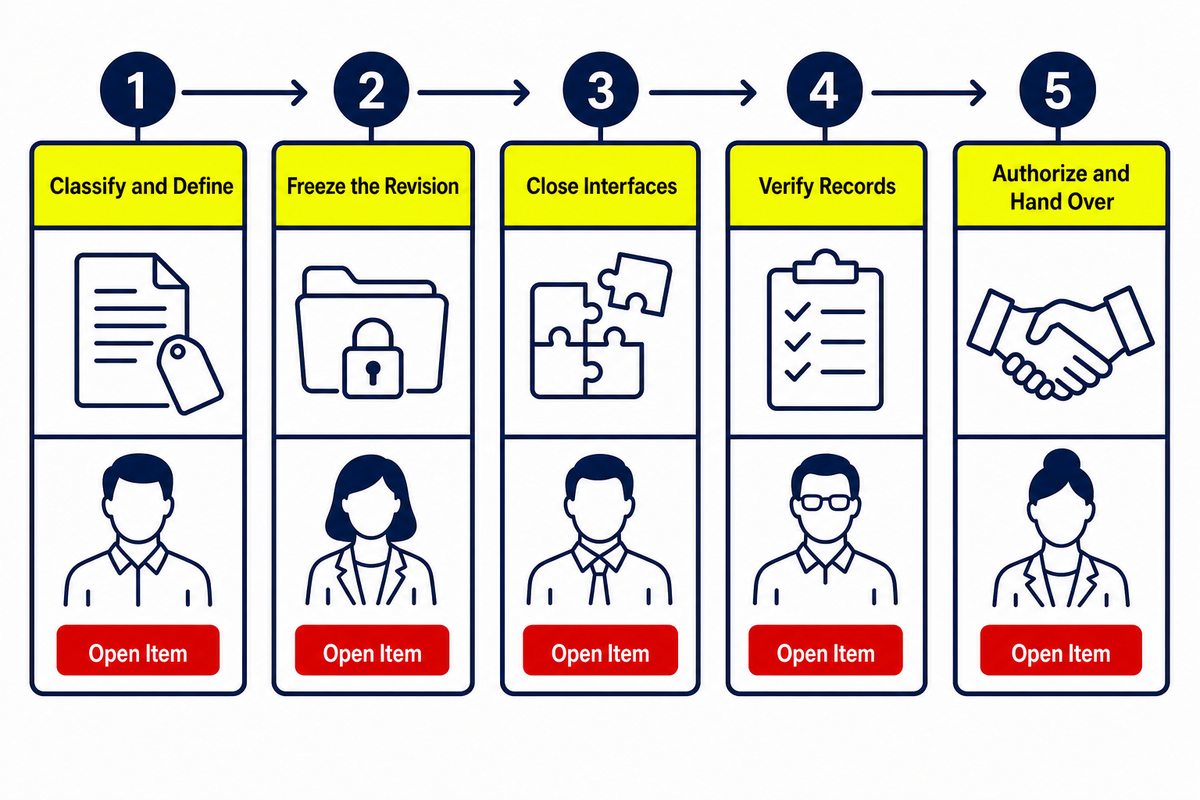

10. 5-Decision Drawing-to-Handover Record: Can the Project Pass?

The following record is an editorial framework rather than a standard, certification or commissioning form, or maintenance plan. It organizes five decisions: classification, revision control, interface closure, record verification, and handover authorization. Its purpose is to keep assumptions from moving between teams.

There’s a useful US scope example that demonstrates the first decision’s importance. The Department of Energy’s distribution-transformer page combines a number of conditions: input voltage at or below 34.5 kV, output at or below 600 V, 60 Hz, and a liquid immersed unit in the range of 10 kVA to 2,500 kVA. The revised efficiency standard comes into force on April 23, 2029. These conditions pertain to US classification and timing and aren’t a definitive description of the product phrase in this article.

Frequently Asked Questions

References & Sources

1. IEC 60076-1:2011, Power transformers, general scope and edition status
2. IEEE C57.12.20-2023, overhead-type liquid-immersed distribution transformer scope
3. IEEE C57.12.23-2018, submersible single-phase transformer scope
4. IEEE C57.12.00-2021, general requirements scope
5. Town of Apex, transformer specification and submittal requirements
6. IEEMA Transformer Manual, chapter on transformer drawings
7. OSHA Electric Power eTool, scope and work-category exclusions
8. OSHA eTool, de-energizing lines and equipment
9. US EPA, conditional secondary containment for oil-filled operational equipment
10. US Department of Energy, distribution-transformer definition, test procedure, and compliance timing
11. NETA World Journal, factory acceptance and field commissioning records
