A 110kv power transformer inquiry only becomes quotable once grid duty, MVA requirement, voltage ratio, frequency, insulation coordination, losses, tests, site conditions and delivery boundaries are confirmed. Talite Transformer will not assign an off-the-shelf configuration from a voltage label alone.
Request a Project Quote
target voltage class, subject to project confirmation
buyer inputs for a comparable RFQ
specify, compare, accept and hand over
for price, losses, lead time or warranty
Quotations can’t be compared when suppliers offer different electrical duties, accessories, test scopes or delivery boundaries. The issue is generally an open input set, not a missing brochure.

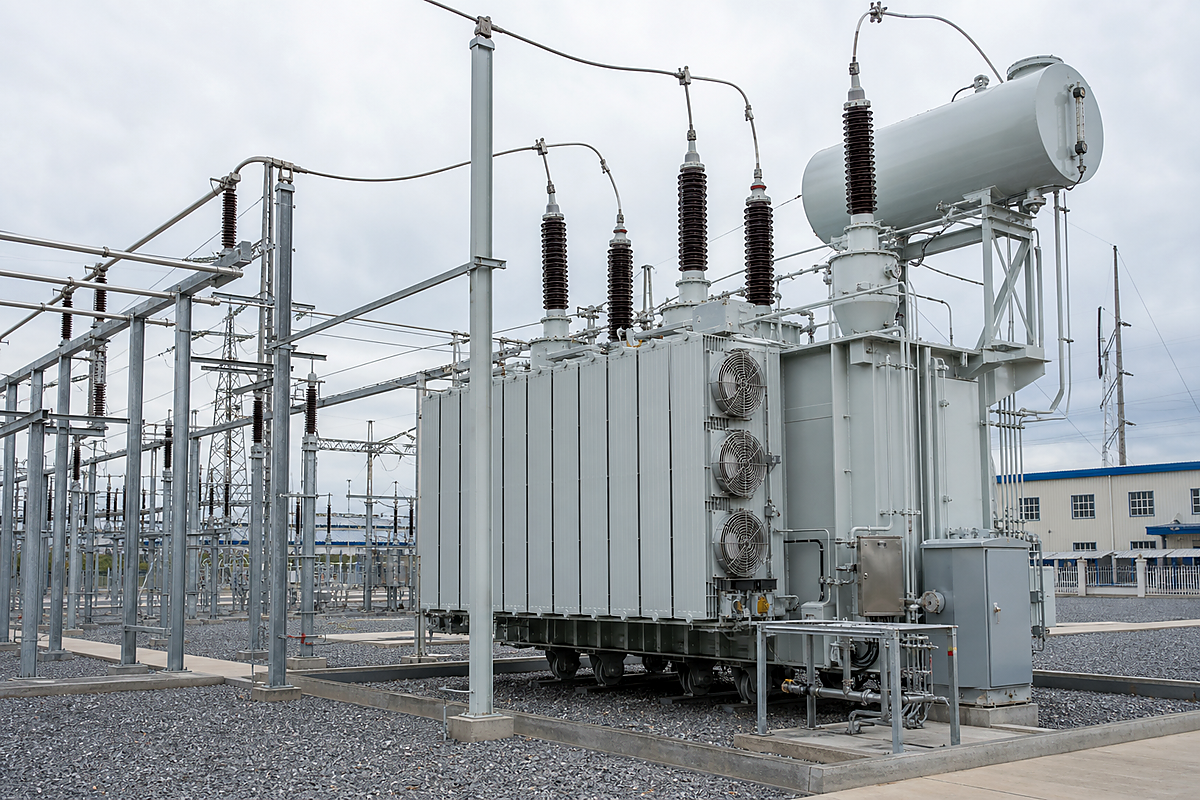

Even a 110 kV high voltage power transformer needs a confirmed secondary voltage level, 50 Hz or 60 Hz frequency, phase arrangement, neutral treatment and operating duty.

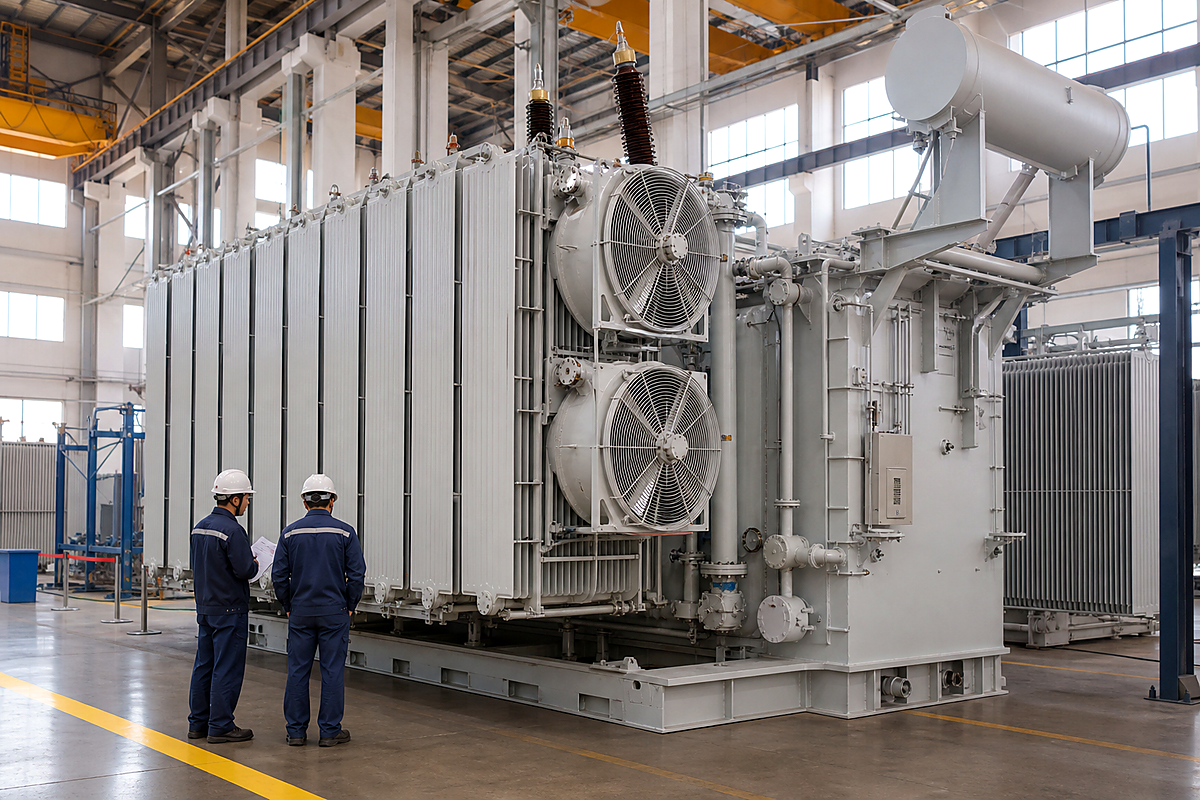

Searching for a 5 MVA 110kv transformer may describe a starting point, but MVA must follow the load profile, contingency case, ambient conditions and cooling stages.
A voltage label does not predefine one universal test or efficiency regime. Local jurisdiction, owner requirements and the adopted transformer standard shape the evidence package.

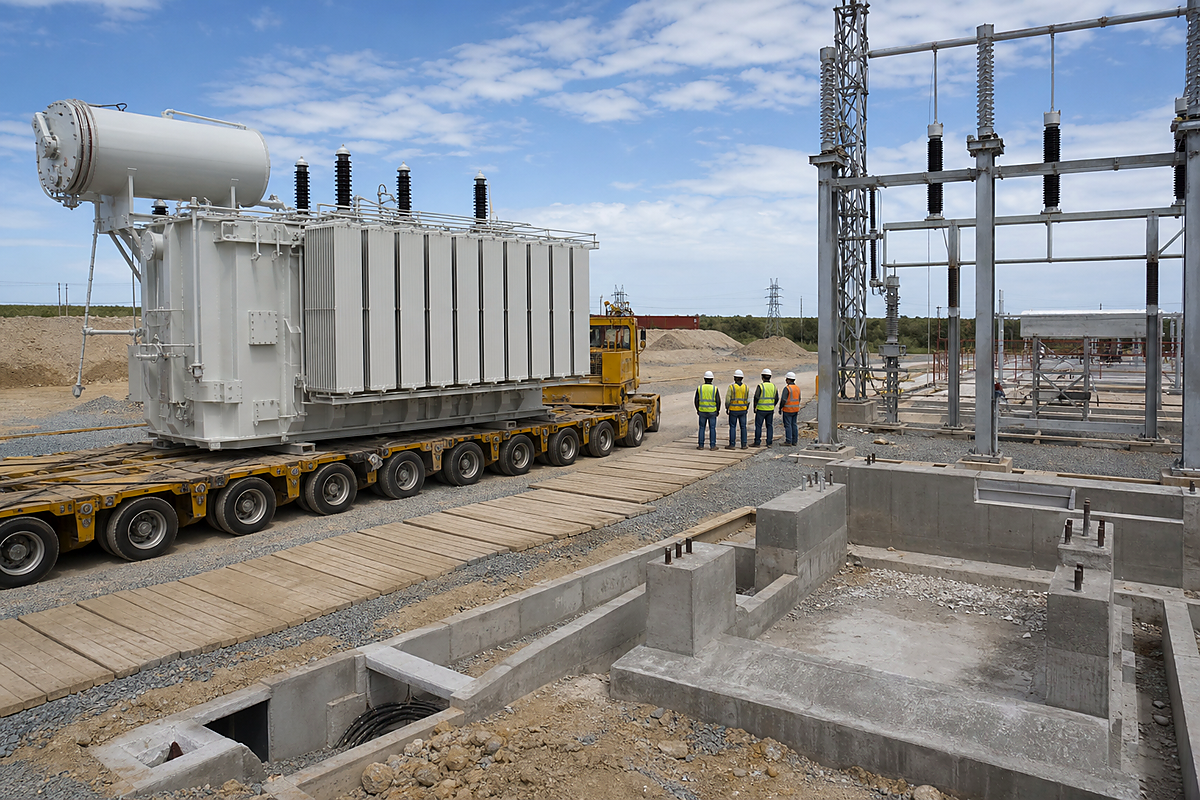

A site mismatch can delay an otherwise acceptable unit when altitude, pollution, seismic duty, transport envelope or civil works were omitted from the RFQ.
Production schedule risk is also a problem of incomplete ownership where there is an unaccepted handoff because a drawing, routing constraint, site requirement, release decision or commissioning task lacks a firm completion date.
Risk: open inputs
enter the quoteRisk: late data
changes civil workRisk: no release
criteria agreedRisk: route or crane
assumption failsRisk responsibility
gap at sitesDOE’s July 2024 report defines a large power transformer for its analysis as 100 MVA or greater. Its 150–400 ton and 36–60 month figures must not be transferred to an unverified 5 MVA reference.
A 110 kV product category is not a proxy for manufacturing duration, shipping mass or route difficulty. Talite Transformer should quantify those items against the approved design and delivery point, while the buyer documents site and route restrictions.

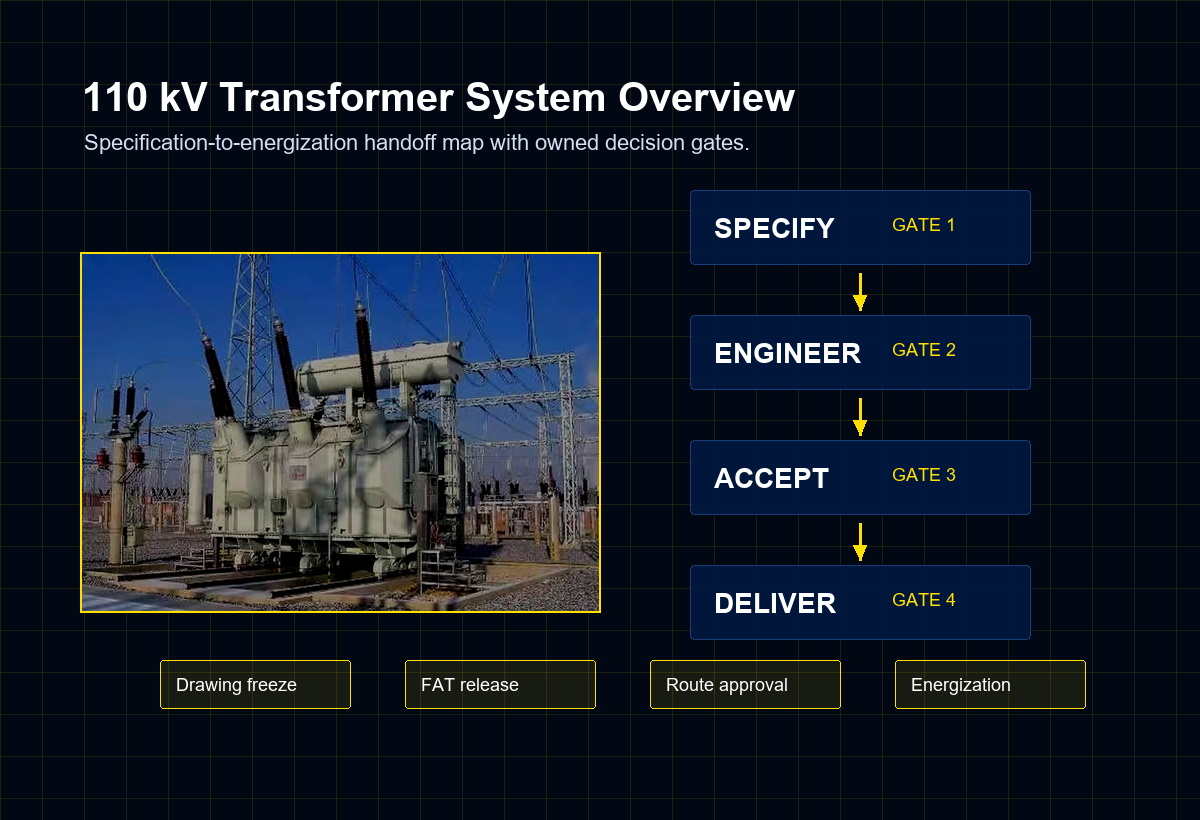

| Handoff | Hidden gap to close | Evidence before release | Named decision owner |
|---|---|---|---|
| RFQ to technical offer | Open 110 kV, MVA, 50/60 Hz, fault or site inputs | Assumption register and technical exception list | Buyer engineering lead |
| Offer to design freeze | Late terminal, accessory, control or civil-interface changes | Approved drawings and interface schedule | Project engineering lead |
| Factory test to shipment | Missing witness decision or unresolved test result | Accepted FAT reports and signed release | Quality representative |
| Shipment to site | Mass, dimensions, route, unloading or storage assumptions | Transport plan and receiving checklist | Logistics and site lead |
| Installation to energization | Unclear oil work, assembly, testing, settings or service scope | Commissioning plan and responsibility matrix | Commissioning authority |
Provide the required-on-site date and transport envelope for a project-specific schedule and interface review.

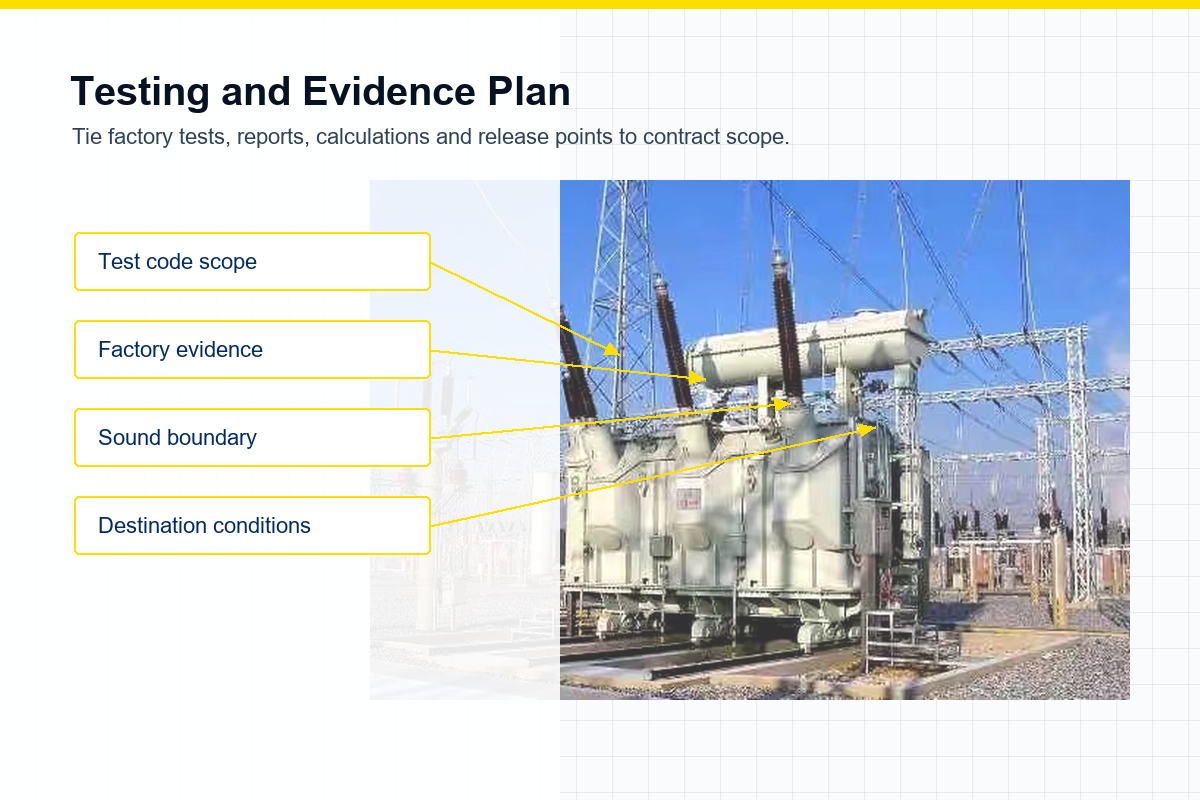

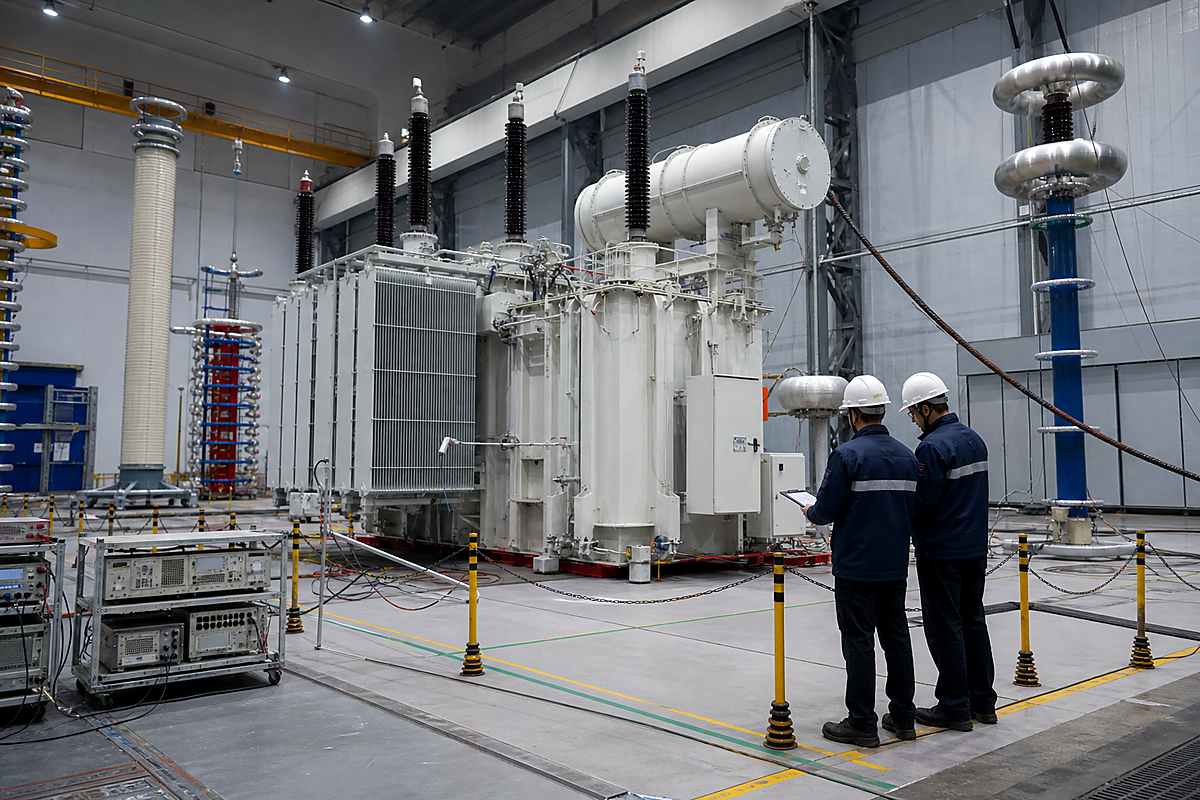

A test list can still fail during procurement when the governing code, acceptance criteria, witness points or report format are unclear. Public standard scope is not the same as a project’s complete test schedule, so each requirement needs a contract reference.
IEEE C57.12.90-2021 publicly covers test methods for liquid-immersed distribution, oil-immersed power and regulating transformers, including ratio, resistance, losses, dielectric, temperature, short-circuit and sound measurements.
EU Regulation 548/2014 uses rated-power or highest-voltage-for-equipment thresholds and loss or PEI requirements for products within its EU scope. It is not a global 110 kV rule.
WAPA’s 2023 equipment standard is a utility-specific example that links factory tests with calculations, drawings, O&M information and certified reports.
Treat factory measurement and installed-site acceptance as separate project decisions. State the no-load, load and cooling-system conditions to be evaluated, then assign the site limit and mitigation responsibility.
| Part | Question to settle | Contract output |
|---|---|---|
| Method | Which standard, edition and project clause govern? | Test-plan reference |
| Condition | At which tap, MVA, temperature, frequency or cooling state? | Recorded test condition |
| Acceptance | What guaranteed value, tolerance or pass rule applies? | Signed acceptance criterion |
| Record | Who witnesses, what is reported and what releases shipment? | Certified report and disposition |
Forward the owner clauses and 110 kV system data for a custom test-schedule and report-package review.
Talite Transformer should provide the project test schedule, factory records and exceptions named in its offer. This page does not state that any insulation system, impulse level, short-circuit capability or partial-discharge limit is already certified for an unconfirmed configuration.

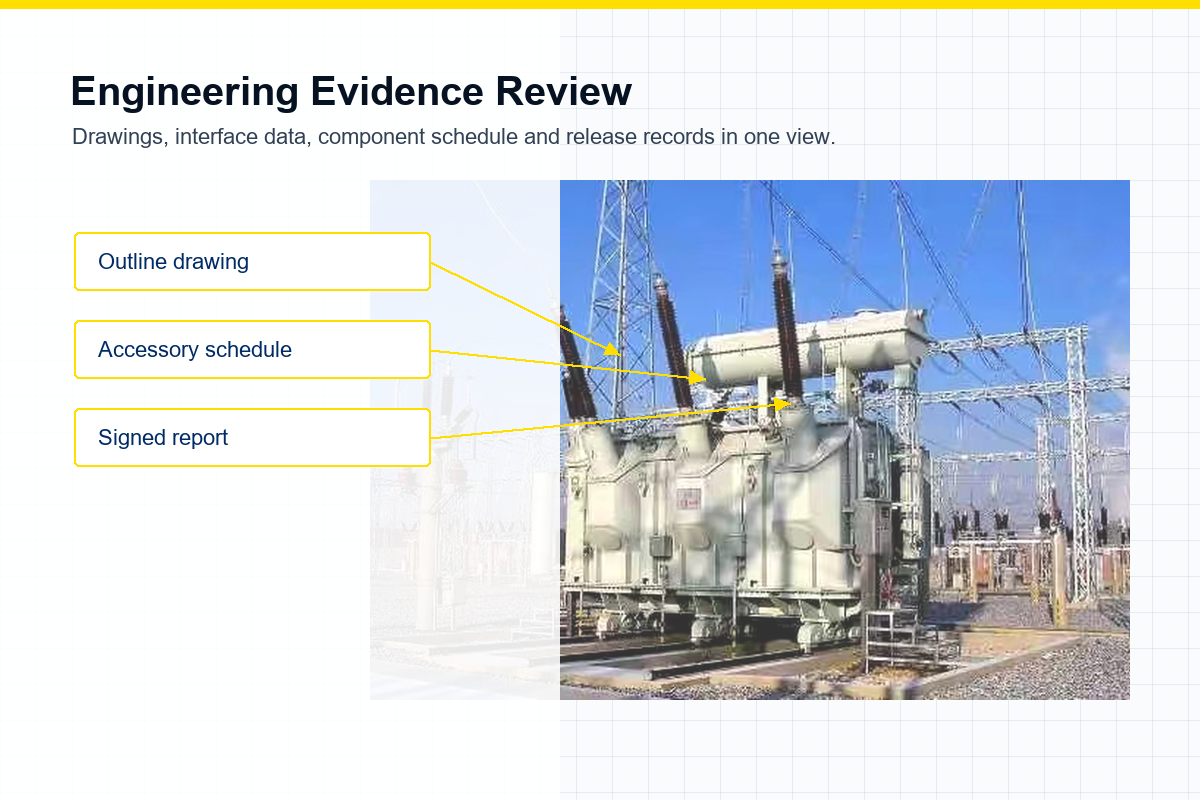

Review Test ScopeEven a strong 110 kV offer leaves a trust gap when test reports, drawings or exceptions are unclear. “Tested” describes an activity; procurement still needs traceable acceptance evidence.
Score each row from 0 for missing to 4 for accepted. The result is an editorial buyer checklist, not a certificate or a substitute for the governing transformer standard.
Talite Transformer is the intended manufacturer identity for a project-specific 110 kV inquiry and quotation path.
MVA, winding and core materials, insulation, impulse level, short-circuit duty, partial discharge, losses and accessories.
Price, Incoterm, schedule, tests, documents, site service, warranty and the exact supply boundary.
System data, owner clauses, evaluation factors, route limits, site readiness and final acceptance authority.
Without traceable product evidence, Talite will not claim CRGO, all-copper windings, a partial-discharge value, an impulse withstand level, a fixed lead time or a warranty term on this page. A sound offer identifies the source and condition of every guarantee instead of borrowing a competitor specification.

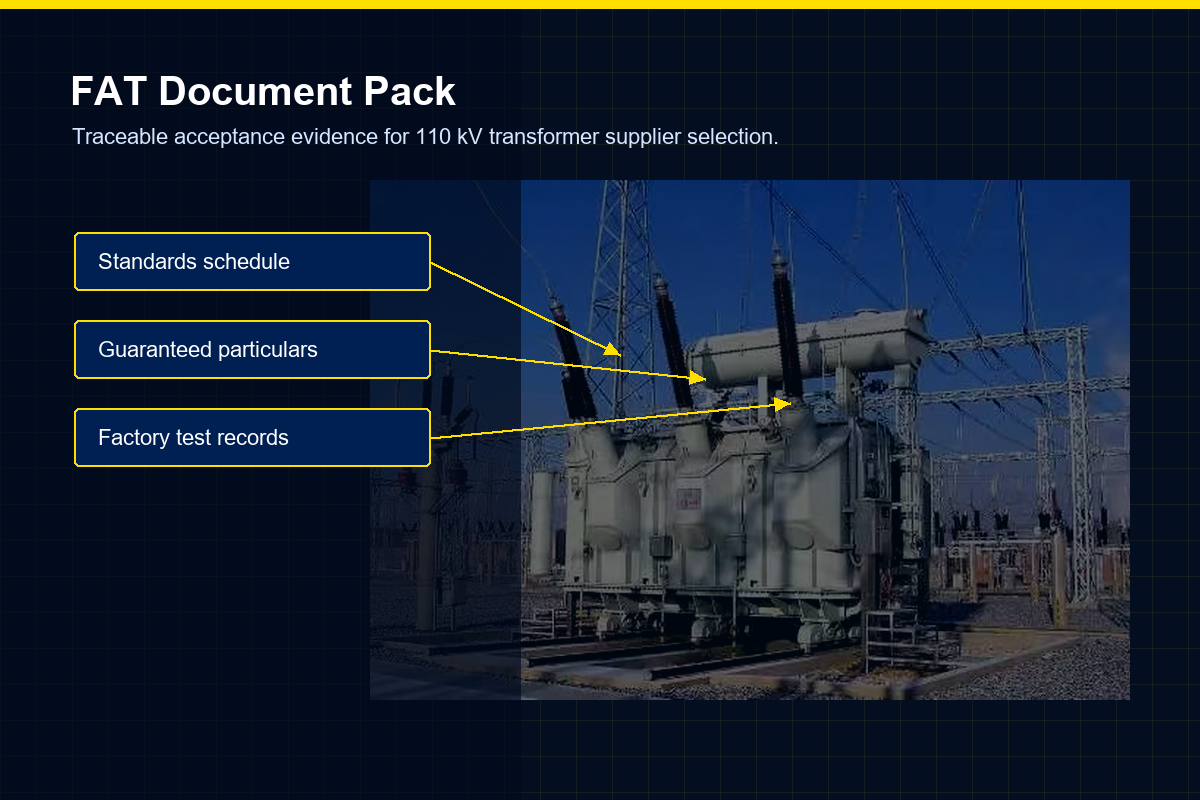

Request a custom supplier-evidence pack tied to the 110 kV specification and FAT requirements.
No. A firm offer also needs the MVA duty, full voltage ratio, 50 Hz or 60 Hz frequency, phase relation, grounding, fault data, insulation coordination, losses, site conditions, accessories, tests and supply boundary.
Submit 5 MVA as a requested project input, not a pre-verified product claim. Talite must review load duty, cooling, impedance, voltage regulation, insulation, site conditions and the acceptance basis before confirming a configuration.
The answer depends on the destination market, owner specification and transformer category. Name the exact standard and edition in the RFQ, then require the supplier to list deviations and project test evidence.
First align equipment scope, accessories, freight, tests, documents and services. Then apply the owner’s approved factors to each bidder’s guaranteed no-load, load and auxiliary losses.
Start from the governing standard and owner clauses, then agree routine, type and special tests, test conditions, witness points, acceptance criteria and report format. A generic list is not a project test plan.
Not necessarily. Procurement should separate no-load, load and cooling-system sound conditions, then assign responsibility for the combined operating case, site propagation and mitigation.

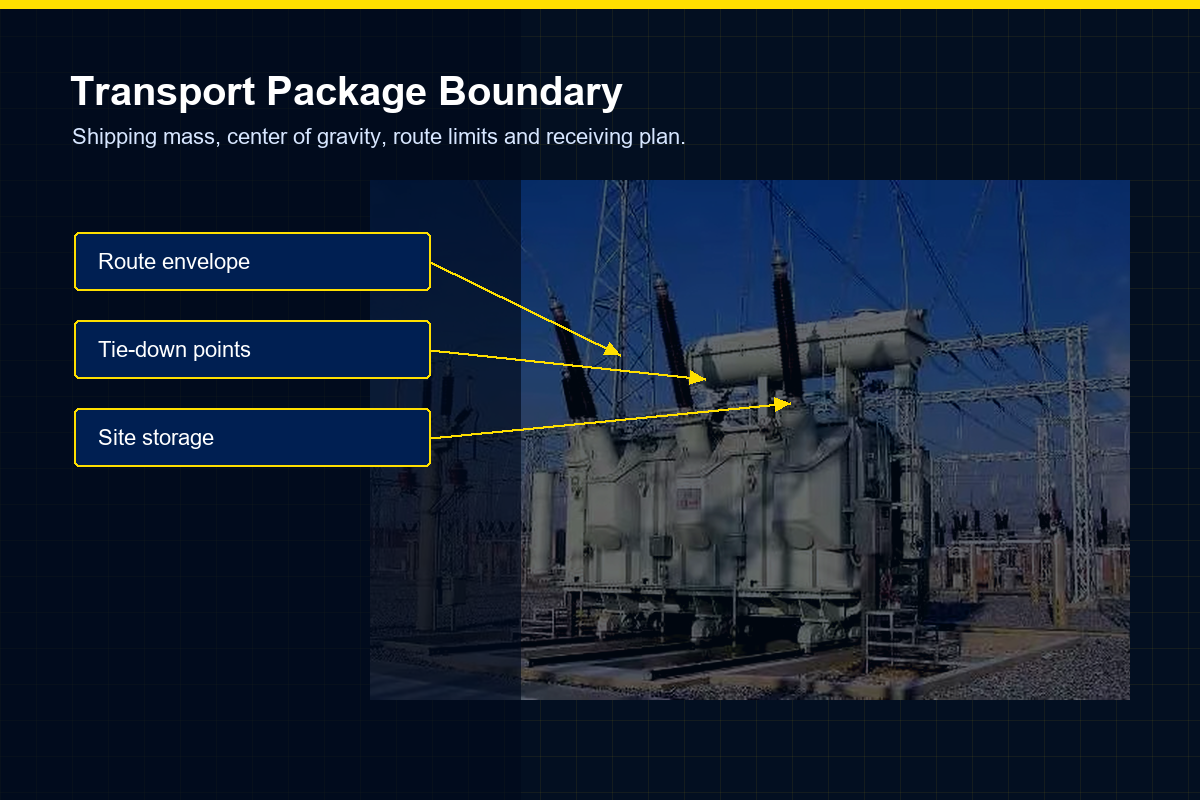

Request milestone dates, shipping mass and dimensions, center of gravity, transport condition, route constraints, unloading method, storage needs, site assembly and commissioning responsibilities. Do not substitute a category-level lead-time statistic.
Ask for the technical schedule, guaranteed particulars, standards and exceptions, accessories, test plan, drawing register, document register, commercial scope, milestone schedule, site-service split and warranty terms.
