A useful dry-type transformer quotation starts with the electrical duty, site environment, construction, cooling, enclosure and evidence requirements already defined. Talite Transformer routes each industrial power-distribution enquiry to the relevant product family instead of treating every dry transformer as a generic configuration.
Send rated kVA, primary and secondary voltage, frequency, phase, vector group, target impedance and the load profile. Harmonics, motor starting, cyclic duty and future expansion can change thermal and protection decisions even when the nameplate kVA is unchanged.
State indoor or outdoor placement, altitude, ambient range, dust, moisture, condensation, corrosion, ventilation, sound limits and available clearances. These inputs determine whether the proposal needs a cast-resin or open-wound path, an enclosure, fan assistance or further engineering review.
Send the single-line diagram, load schedule and project specification when available. Mark unknown fields for review instead of filling them with generic values.
Send Your Transformer Requirements
Talite Transformer Co., Ltd. has worked in power equipment for more than three decades and integrates research and development, production and sales. We supply cast resin dry-type transformer and open-wound dry-type transformer families, with a separate medium-voltage dry-type transformer route for projects that require more detailed insulation coordination and system review.
Product-family labels do not replace a project standard or construction definition. When IEEE C57.12.01 applies, the proposal should identify whether the transformer is ventilated, non-ventilated or sealed and then state the model-specific cooling and enclosure boundary.[2]

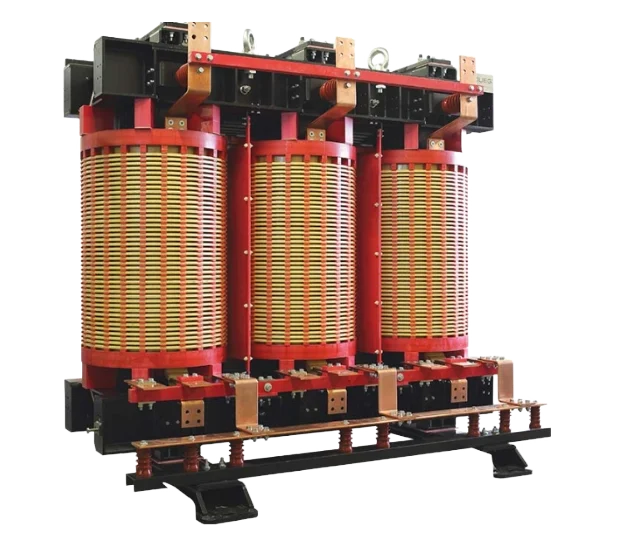

Use this path when the primary system, basic insulation level, taps, terminals, enclosure, cooling and applicable standard must be coordinated as a medium-voltage package. We review the project voltage class and site conditions before the final ratings are fixed.
Review Medium-Voltage Options

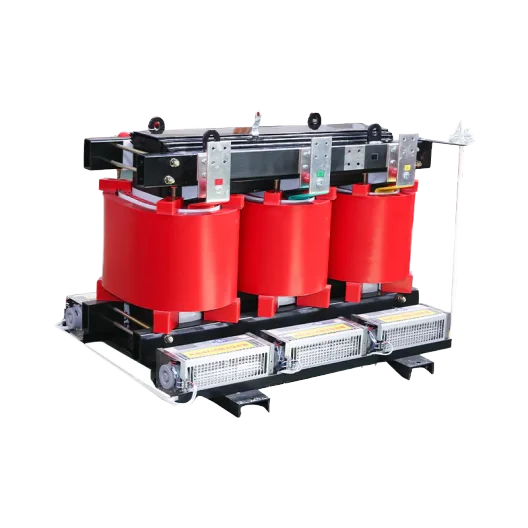

Epoxy cast-resin windings help address moisture, contamination and fire-sensitive indoor installation requirements without using insulating oil. We match the resin system, thermal class, cooling and enclosure to the project rather than using the cast-resin label as a complete specification.
Compare Cast-Resin Configurations
This product route covers a supplied 1000 kVA, 11 kV three-phase cast-resin model. We keep the 1000 kVA and 11 kV values attached to that model; a different load, voltage, impedance, enclosure or environmental duty receives a separate configuration review.
Review the 1000 kVA / 11 kV Model

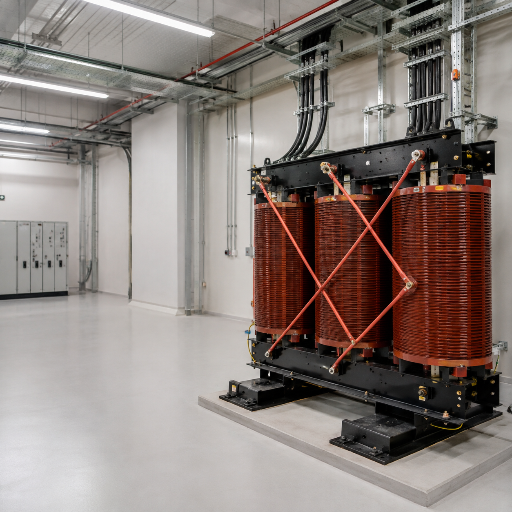

Open-wound construction keeps the winding structure ventilated and accessible to air, making room ventilation and contamination control central to the design. We offer a 3750 kVA open-wound model path for heavy-duty applications, subject to complete electrical and site inputs.
Review the Open-Wound ProductCast resin and open-wound constructions are not interchangeable. ‘Best’ is not the criterion; it’s a trade-off between winding protection, ventilation, heat removal, physical access, contamination risk, fire strategy, construction footprint and formal documentation required for project approvals.
IEEE C57.12.01 distinguishes ventilated, non-ventilated and sealed dry-type transformer categories; the project still has to define which construction and cooling boundary applies to the proposed model.[2]
A construction name alone is not a substitute for a project specification. Dry type can be the wrong answer when outdoor duty, large capacities, severe ventilation challenges or local fire regulations favor another transformer technology; that boundary is determined in relation to the specific site, its operating conditions and approval context.
Use five gates before selecting a product card: electrical duty, installation environment, thermal path, evidence requirement and quotation scope. If any gate is undefined, the correct next step is to define it in the request for quotation, not to infer it from a brochure image or family name.
kVA, voltages, frequency, phase, vector group, impedance, taps and load profile.
altitude, ambient, dust, moisture, corrosion, outdoor exposure and room access.
natural or forced air, heat rejection, clearance and fan duty.
design standard, regulatory scope, product acceptance, tests and approval documents.
accessories, quantity, destination, inspection, packaging and written commercial terms.
“A transformer proposal becomes comparable only when the electrical duty, installation boundary, evidence scope and commercial scope describe the same equipment.”
Standards must be attached to the claim they actually support. We use IEC 60076-11 and GB/T 10228 as documented design references in the relevant product material, while a project-specific quotation must identify the applicable edition, required tests and evidence for the exact model.
IEC 60076-11:2018 covers dry-type power transformers and autotransformers up to and including 72.5 kV, with stated exclusions. Project specifications should state the design standard, required tests and any separate market-approval or certification requirement as distinct acceptance fields.[1]
IEEE C57.12.01-2020 is an active standard for ventilated, non-ventilated and sealed dry-type distribution and power transformers or autotransformers at 601 V or higher on the highest-voltage winding. Use it when the project specification requires the IEEE framework, then define the exact clauses and tests.[2]
U.S. energy-conservation rules cover defined distribution-transformer categories and exclude listed equipment types. The amended standards have a compliance date of April 23, 2029, but coverage and model-level certification must be established before making a U.S. compliance statement.[3][4]
For U.S. workplaces, a Nationally Recognized Testing Laboratory requirement is tied to the product, authorized mark, test standard and installation context. Specify the exact product-acceptance evidence required by the authority or project separately from an IEC or IEEE design reference.[5]
Product evidence is strongest when the image, rating and product path describe the same item. The views below use customer-provided transformer files for this category and keep each visible rating attached to its named product path.

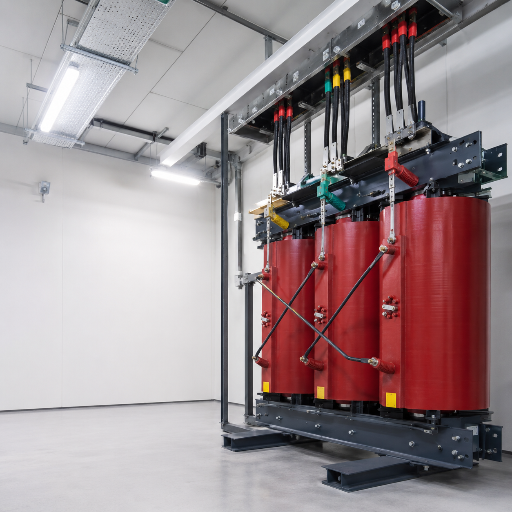

Cast-resin three-phase transformer product view associated with the 1000 kVA / 11 kV product material.

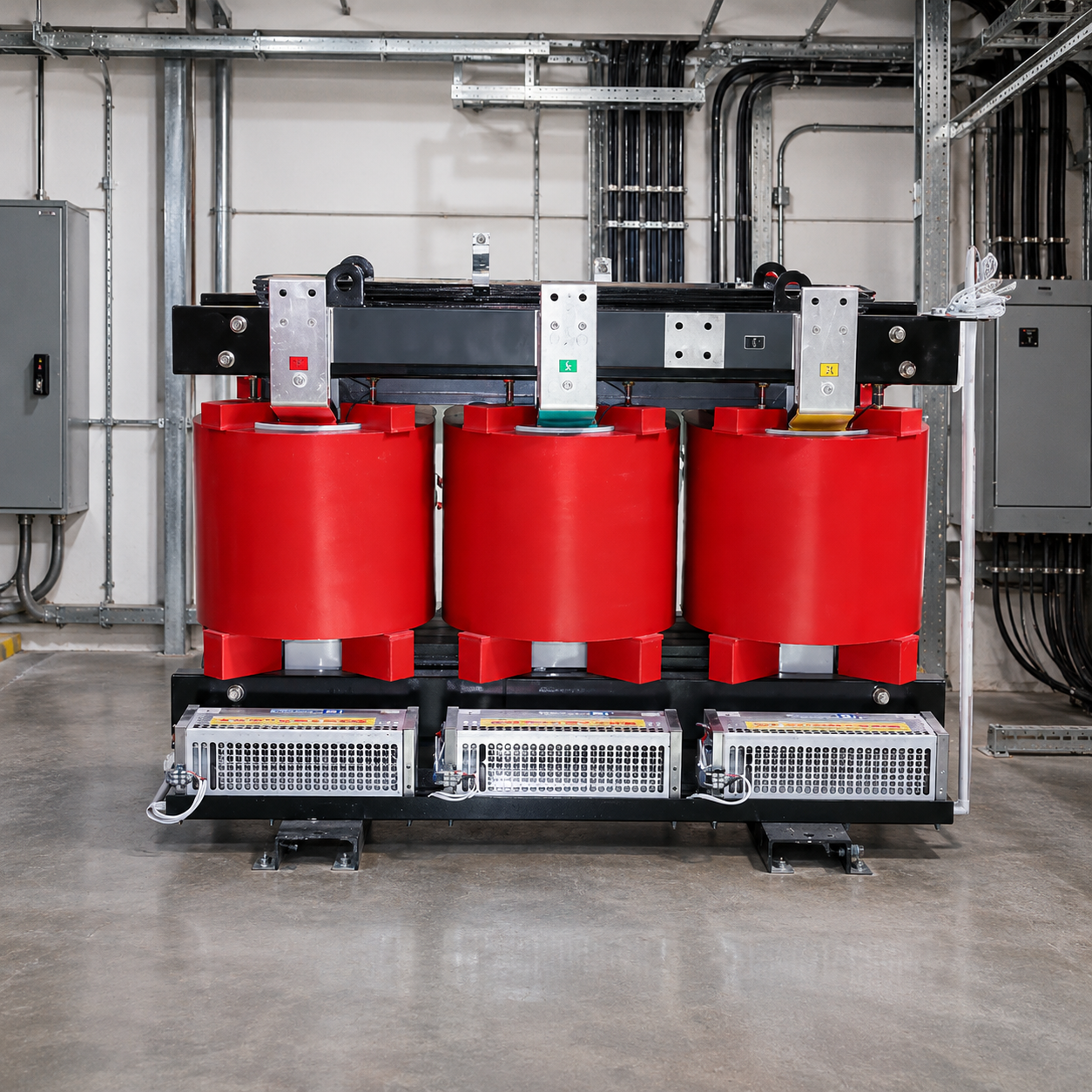

Front view showing three encapsulated phase windings and the lower cooling arrangement.

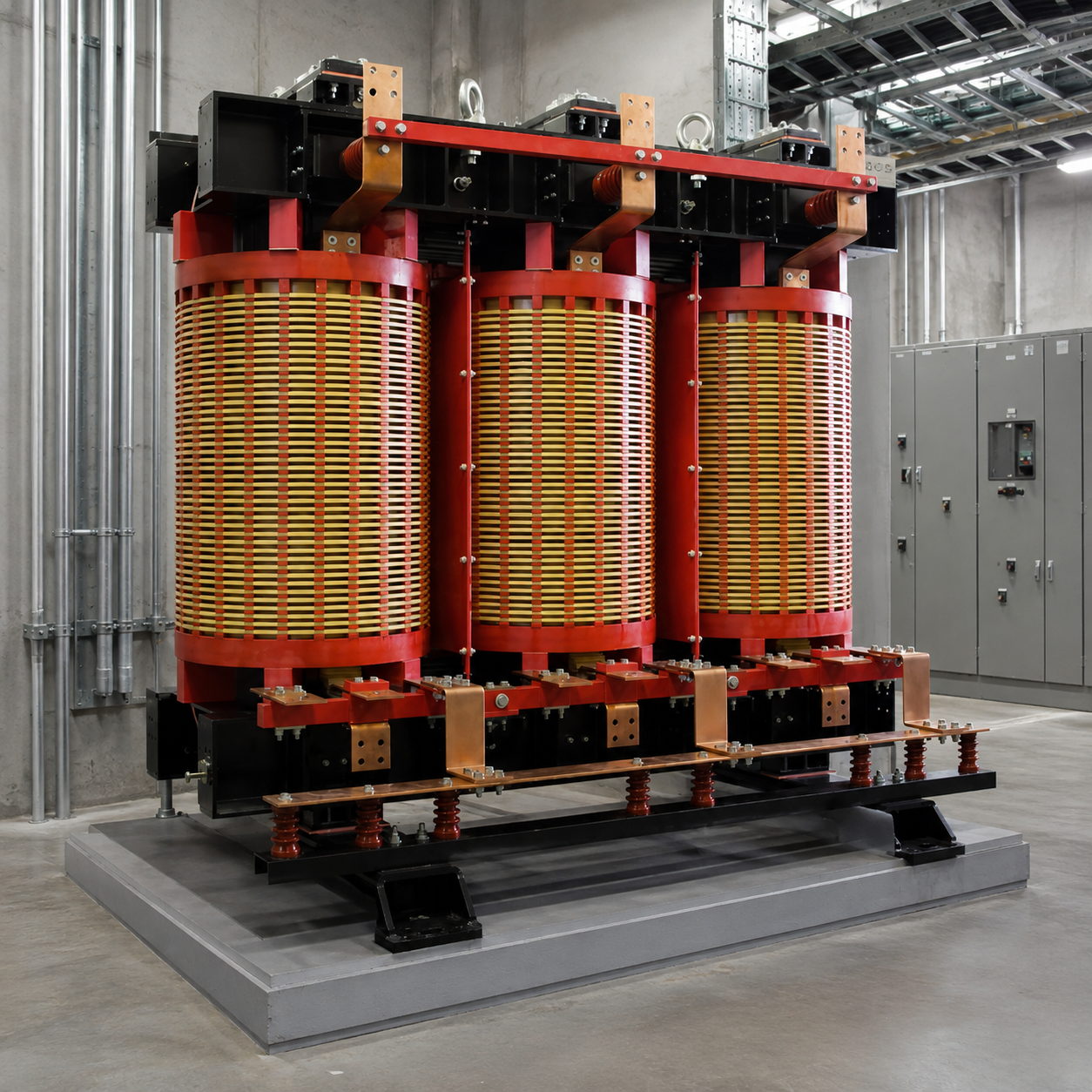

Open-wound transformer product view associated with the 3750 kVA product material.
Coordinate redundancy philosophy, harmonic loads, mechanical rooms, heat rejection, sound, fire strategy, monitoring and access. The dry-type label addresses the insulation medium, but it does not close the thermal or system-reliability design.
Provide motor starting, cyclic duty, converter or rectifier harmonics, fault level and contamination data. Heavy-duty service can change impedance, winding mechanical design, cooling and maintenance access.
Define local acceptance, fire compartment, sound, ventilation, shutdown access and product approval requirements early. The authority having jurisdiction and project specification control the evidence package.
Coordinate grid voltage, frequency, earthing, harmonic spectrum, ambient extremes, altitude and enclosure. Outdoor placement requires a complete environmental and cooling design, not only an outdoor label.
Dry type is not an automatic answer for every project. Dry type transformer maintenance requirements and lifecycle objectives depend on the electrical duty, heat-rejection path, environment, available space, fire and spill strategy, access and market rules.
If ventilation, enclosure, system duty or evidence cannot be closed, compare an alternative construction or transformer technology before release. That comparison is more valuable than forcing every project into a dry transformer because the category appears safer or simpler on paper.
If the site boundary points to another equipment family, review a pad-mounted transformer configuration path for outdoor distribution layouts or a single-phase liquid-filled configuration when the phase arrangement and drawing-confirmed installation fit call for that route.
Enter apparent power and line-to-line voltage to estimate rated three-phase line current. Use the result as an RFQ input, not as a protection, cable, or transformer-sizing decision.
A comparable quotation starts with a comparable scope. Fill the fields you know; the builder leaves missing items marked for engineering review instead of guessing.
Select the conditions that apply. The tool produces engineering questions and a product-page route; it does not make a final transformer selection.
Start with moisture, dust, contamination, room ventilation, fire strategy, access and maintenance conditions. Cast resin adds winding encapsulation; open-wound construction makes clean cooling air and enclosure design especially important, while the final choice still depends on voltage, kVA and the complete site boundary.
Outdoor use is an enclosure and thermal-design question, not a family-name shortcut. State the ambient range, altitude, solar exposure, rain, condensation, contaminants, corrosion, ingress requirement and heat-rejection path so the construction and enclosure can be reviewed together.
Provide room dimensions, inlet and outlet locations, airflow, maximum room temperature, adjacent heat sources and whether fan-assisted transformer cooling is planned. Room ventilation must remove transformer heat without recirculating hot discharge air or blocking required clearances.
For buyers comparing a dry type transformer vs oil filled transformer, the starting points are the insulation and cooling medium, spill strategy and installation location. Liquid-filled designs can offer different power-density and heat-transfer characteristics, so capacity, containment, maintenance, environment and local rules should be compared rather than reduced to one universal preference.
Include kVA, primary and secondary voltage, frequency, phase, taps, vector group, impedance, cooling, insulation class, loss or efficiency requirements, ambient, altitude, enclosure and the load profile. For a balanced three-phase estimate, the line current can be checked with I = kVA × 1,000 ÷ (√3 × V).
Yes. The specified product path is a 1000 kVA, 11 kV three-phase cast-resin model; confirm secondary voltage, vector group, impedance, taps, cooling, enclosure, losses, accessories and tests in the project quotation.
Stated normal conditions include altitude up to 1,000 m, maximum ambient +40°C, maximum daily average +30°C, maximum annual average +20°C and minimum ambient -25°C. A site outside those conditions needs project-specific thermal and dielectric review.
This <10 pC statement belongs to the relevant supplied cast-resin series material. It should be repeated in the quotation and test schedule for the exact model, together with the applicable test method and acceptance criterion.
No. IEC 60076-11 is a dry-type transformer standard with a stated scope up to and including 72.5 kV, while U.S. energy coverage, model certification and workplace product acceptance are separate questions that must be resolved for the exact equipment and installation.
Send the single-line diagram, load schedule, electrical ratings, ambient and altitude, installation and enclosure requirements, cooling, accessories, test and document list, quantity and destination. Use the RFQ builder above to leave unknown items visible for engineering review instead of hiding them behind generic assumptions.
