A 3 phase utility transformer is electrical equipment that changes voltage between three-phase circuits for a defined utility or utility-connected duty. In an ideal three-phase system, corresponding phase quantities are separated by 120 degrees. “Three phase” identifies the electrical system, but it does not settle the unit-or-bank architecture, rated voltages, winding connection, neutral, grounding, mounting interface, or approval responsibility.
This guide helps buyers turn an incomplete label into reviewable project inputs. It explains document boundaries and common relationships, but it is not a field wiring guide, protection study, grounding design, or engineering approval.
Updated August 2026. Confirm the current utility rules, adopted standards, drawing revisions, and project requirements when the specification is issued.

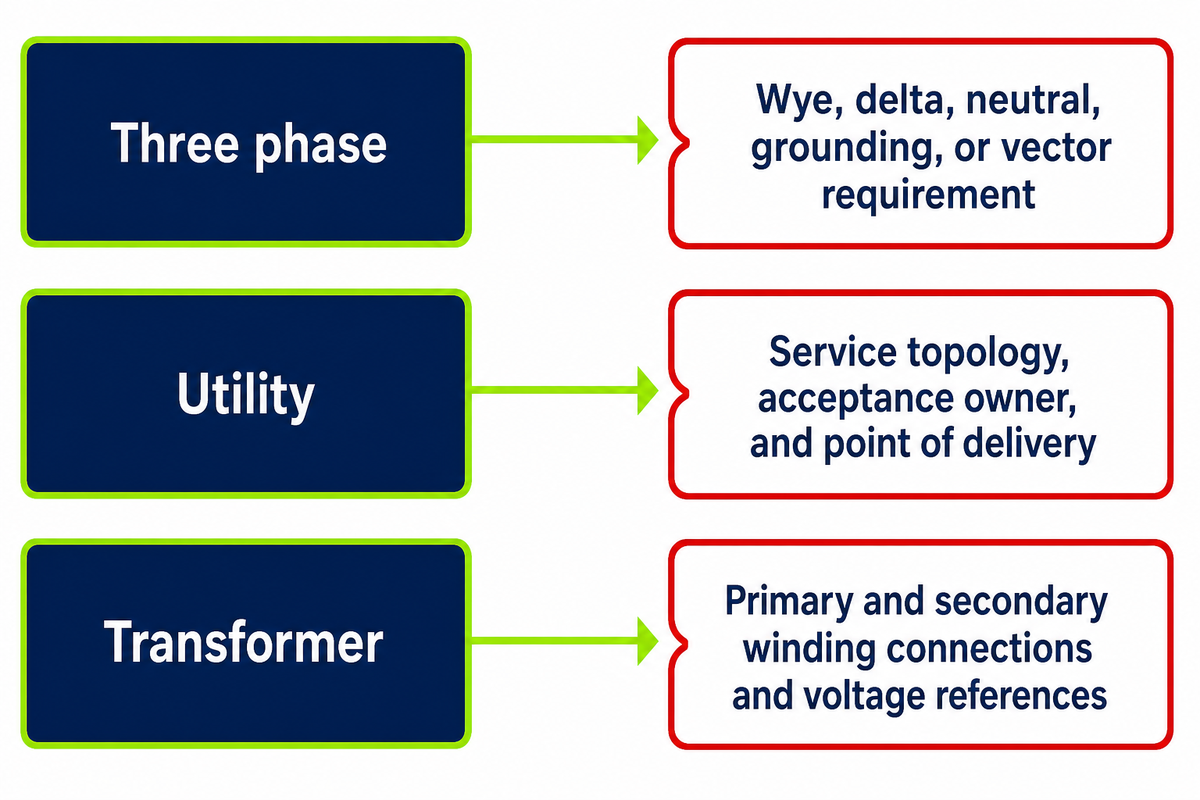

The phrase 3 phase utility transformer identifies a three-phase voltage-transformation duty, but it does not specify unit-or-bank architecture, primary or secondary winding connection, line-to-line and line-to-neutral references, neutral treatment, grounding, or phase displacement. Those connection fields must come from controlled utility and project documents.
| Phrase element | What it establishes | Connection detail that remains open |
|---|---|---|
| Three phase | A polyphase circuit context | Wye, delta, neutral, grounding, or vector requirement |
| Utility | A utility or utility-connected duty in everyday language | Service topology, acceptance owner, and point of delivery |
| Transformer | Voltage transformation by electromagnetic induction | Primary and secondary winding connections and voltage references |
A magnetic core and winding coil help explain voltage transformation by electromagnetic induction, but this article uses that concept only to frame connection questions. For grid role, power distribution context, construction, and general transformer design terminology, use the electric utility transformer overview.
“is designed for operation with an input line voltage of 34.5 kV or less”
The quoted line belongs to a U.S. federal energy-conservation definition that also uses an output threshold of 600 V and 60 Hz operation. It is a program boundary with explicit exclusions, not a global definition of every transformer used by a utility and not proof that any particular Talite product falls inside the regulated class.

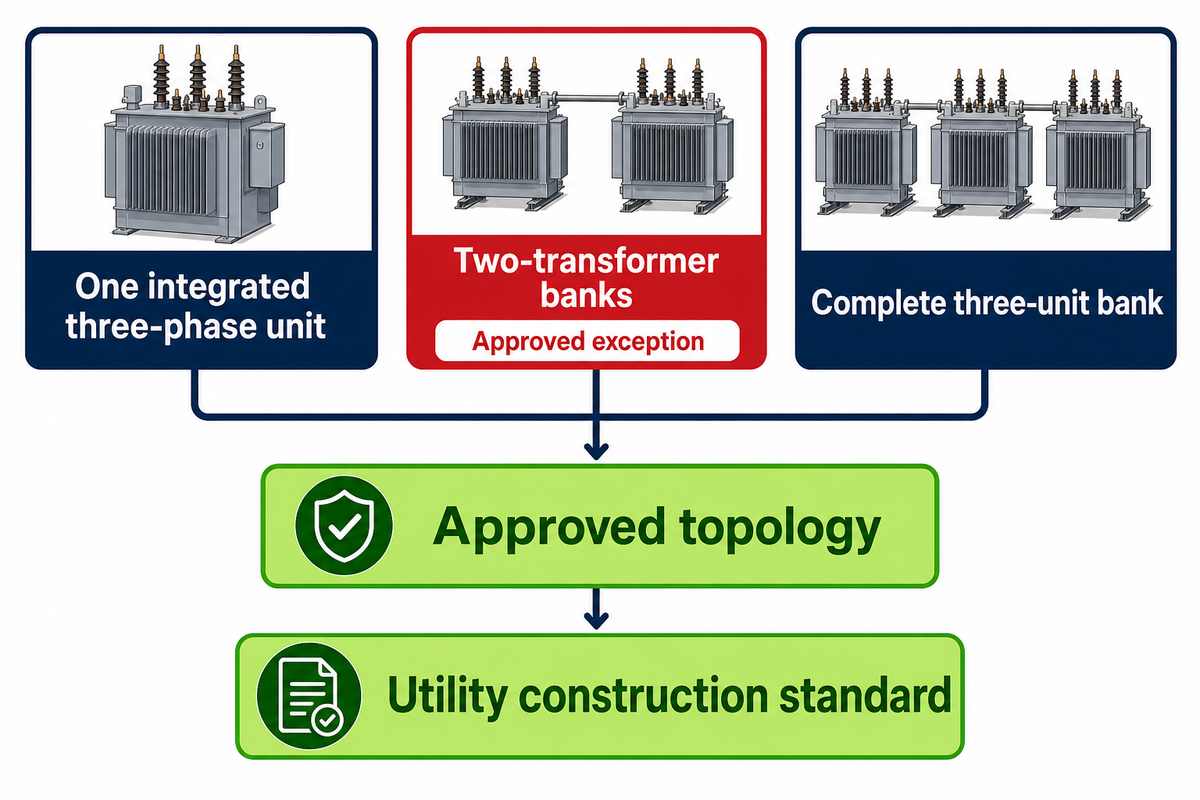

One integrated assembly or a bank of single-phase transformer units can provide a three phase transformer architecture, but that split is only a first routing screen. Utility practice, one-line drawings, replacement strategy, ratings, and installation interfaces decide which architecture can enter a project review. Whether one transformer or several units are proposed, the approved documents govern the topology.
The Unit-or-Bank Configuration Fork separates the first architecture question without pretending to select equipment.
The fork is not exhaustive. EPRI documents open-wye/open-delta arrangements using two single-phase transformers, including three-wire and center-tapped four-wire variants; such incomplete-bank topologies require the utility’s approved design and cannot be treated as a routine substitute.
Three single-phase units can form a three-phase bank when the utility and responsible engineer approve the bank topology, unit ratings, voltage relationships, polarity, phase sequence, connection, neutral, grounding, protection, and physical interfaces. Matching only the kVA total or voltage labels does not establish equivalence.
Buyers may compare replacement granularity and document burden, but should not assume that either architecture is more efficient, cheaper, faster, or more reliable without project evidence. The practical objection is missing approval: if the arrangement is absent from the utility standard and one-line, procurement has no auditable basis to release it.

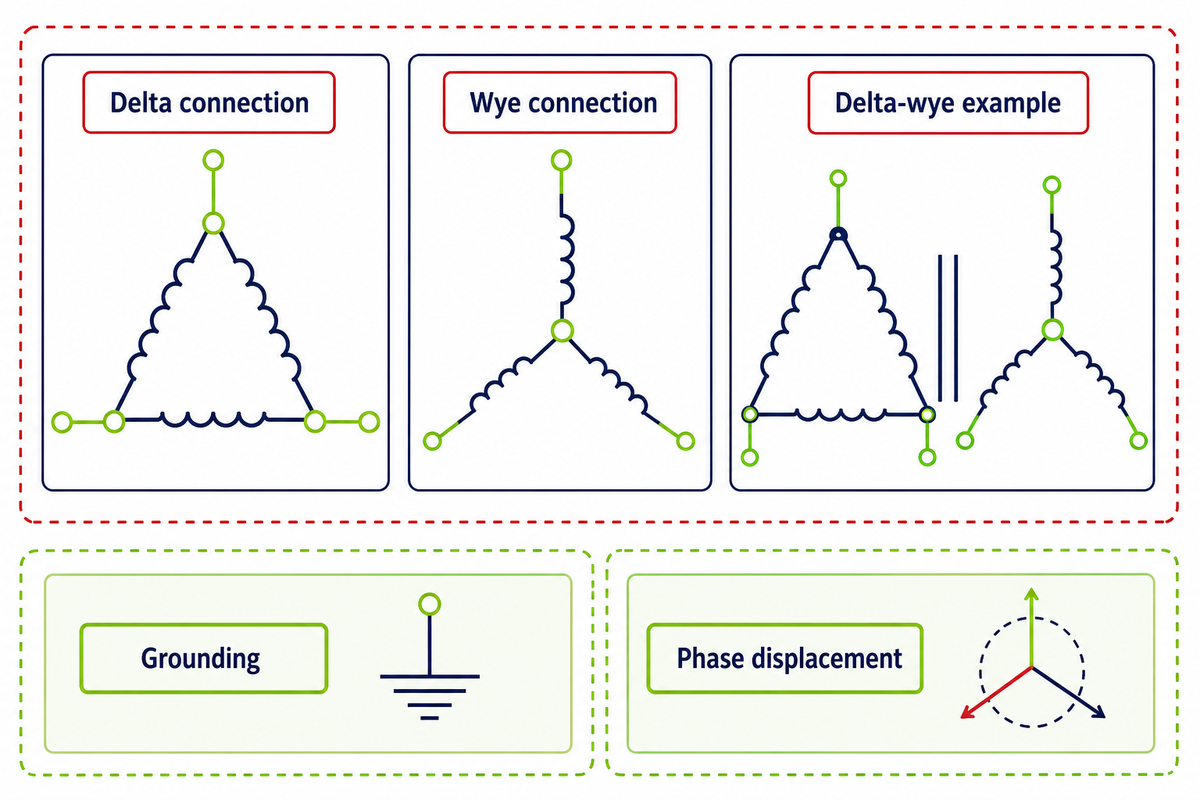

Delta and wye describe common ways to connect three windings, yet neither word completes a three phase transformer connection specification. Source topology, rated line voltage, phase voltage, neutral treatment, grounding, phase displacement, fault behavior, and protection requirements remain controlled inputs.
| Connection label | What it establishes conceptually | What remains open |
|---|---|---|
| Delta connection | Windings form a closed loop; line voltage equals winding phase voltage in the ideal relationship | Grounding, phase displacement, taps, fault duty, and protection |
| Wye connection | One end of each winding meets at a common point; line voltage is √3 times phase voltage in a balanced ideal relationship | Whether the neutral is brought out, grounded, loaded, or permitted |
| Delta-wye or wye-delta | Different primary and secondary winding families | Required phase displacement, grounding path, and vector notation |
Delta connections join three windings end-to-end in a loop, while wye connections join one end of each winding at a common point. In an ideal balanced wye system, a 480 V line-to-line value corresponds to about 277 V line-to-neutral; a 208 V line-to-line value corresponds to about 120 V line-to-neutral. The relationship between line current and phase current also depends on the connection, while voltage between a line and the neutral requires an accessible neutral.
IEEE C57.105’s public scope reaches grounded and ungrounded delta/wye combinations, T-connected, zigzag, and special connections. That broader vocabulary is why “delta vs wye” should be treated as connection literacy, not an exhaustive taxonomy or a substitute for the approved one-line diagram.
Search demand for delta or wye diagrams says that readers need clearer explanations; it does not reveal which connection is correct for a given electric power system. Selection remains a utility and engineering decision tied to source conditions, load behavior, standards, and approved documents.

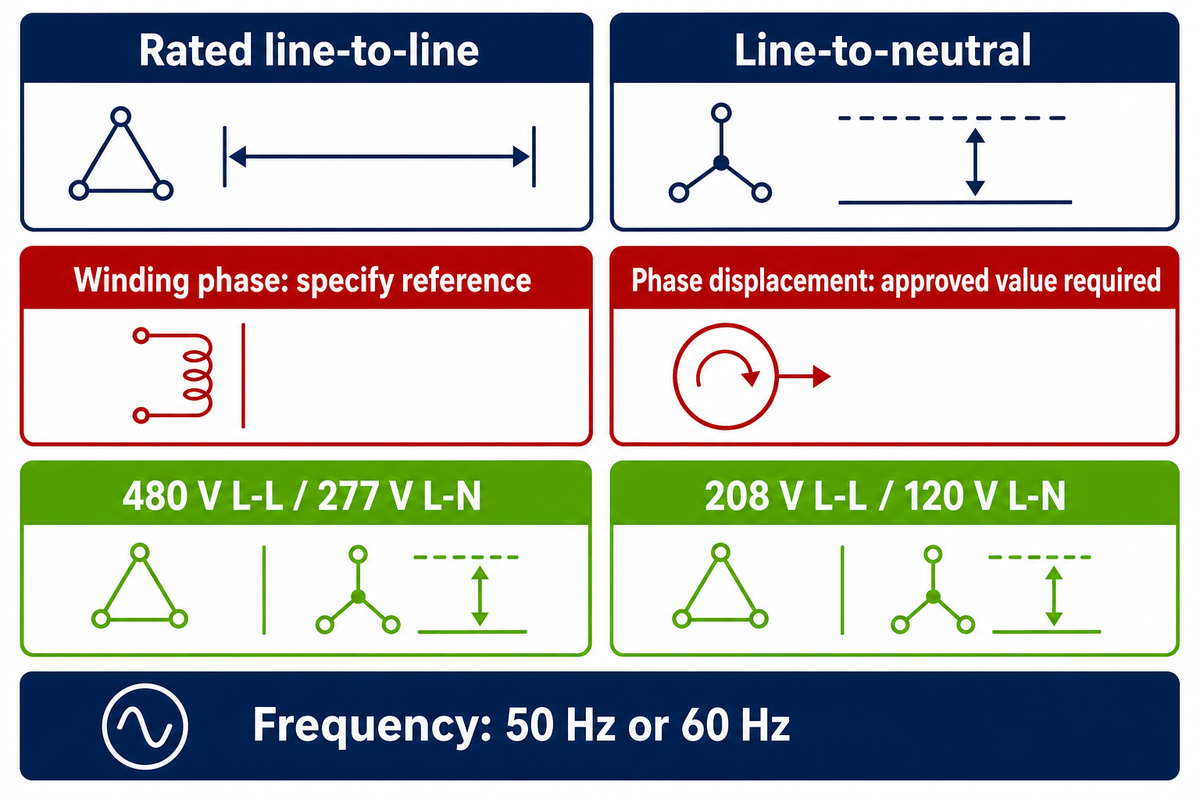

The Four-Field Voltage Reference Card records which voltage each number describes before anyone checks a configuration. Write the line-to-line rating, any line-to-neutral requirement, the winding-phase reference where relevant, and the required phase displacement or vector notation; mark unknowns instead of inferring them.
Requests that state “480/277 V” communicate both line-to-line and line-to-neutral references when the context is a compatible wye system. Bare “480 V” wording does not say whether a neutral is required, while “120 V” without a reference can be misread as a line value, a phase value, or an auxiliary circuit.
The card is a document-control tool, not a calculator. Even when the ideal √3 relationship reproduces a familiar value, the approved drawing must still establish the actual connection, nominal system ratings, taps, grounding, tolerance, and equipment duty.
The public University of Maryland Division 26 specification shows why the fields travel together: its project-specific records include transformer kVA, primary and secondary voltages, connection, impedance, taps, and phase shift. Those are examples of handoff fields, not universal values or Talite product data.

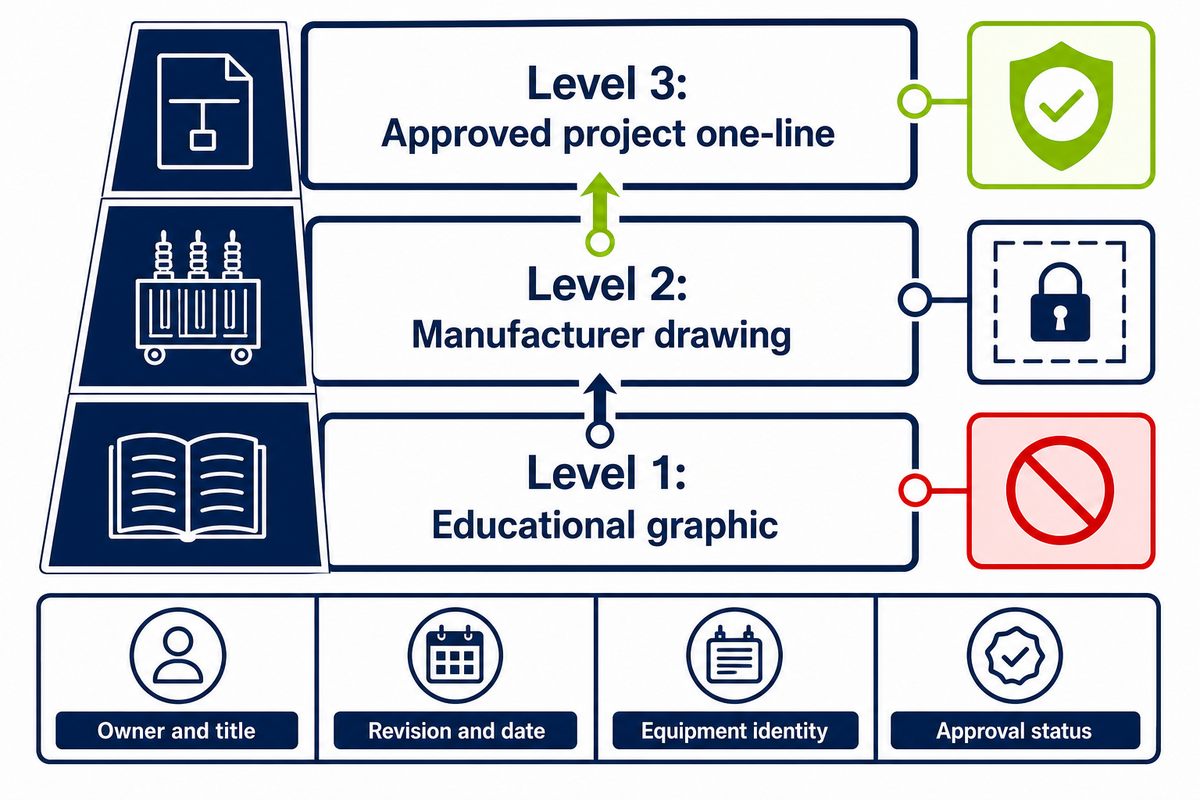

Connection diagrams for a 3-phase transformer can show labeled windings, terminals, voltage references, phase notation, and intended interconnections within their stated scope. The drawing cannot authorize field work unless its owner, title, revision, ratings, approval status, and relationship to the project one-line are controlled.
Buyers can check whether the drawing names the primary winding, secondary winding, rated values, phase, terminal labels, connection notation, taps, and revision. Missing revisions or unmatched equipment identities are document-control failures even when the circuit looks familiar.
| Check | Visible evidence | Route if absent |
|---|---|---|
| Owner and title | Issuing organization and drawing purpose | Document controller |
| Revision and date | Current approved revision | Responsible engineer |
| Equipment identity | Matching tag or data reference | Supplier and owner |
| Approval status | Approved-for-purpose status | Utility or project approver |
Generic articles cannot safely provide project wiring steps. Qualified and authorized personnel must work from the approved one-line, manufacturer connection drawings, utility rules, grounding design, protection study, conductor and termination design, isolation procedures, test plan, and site safety controls for any installation.
IEEE C57.12.80-2024 is the active terminology standard for power and distribution transformers and associated apparatus. Use that terminology reference to normalize equipment language during document review, not as site-specific wiring authority or a project phase-conversion design. Any request to change the number of phases remains a separate system-design question that requires approved project inputs.

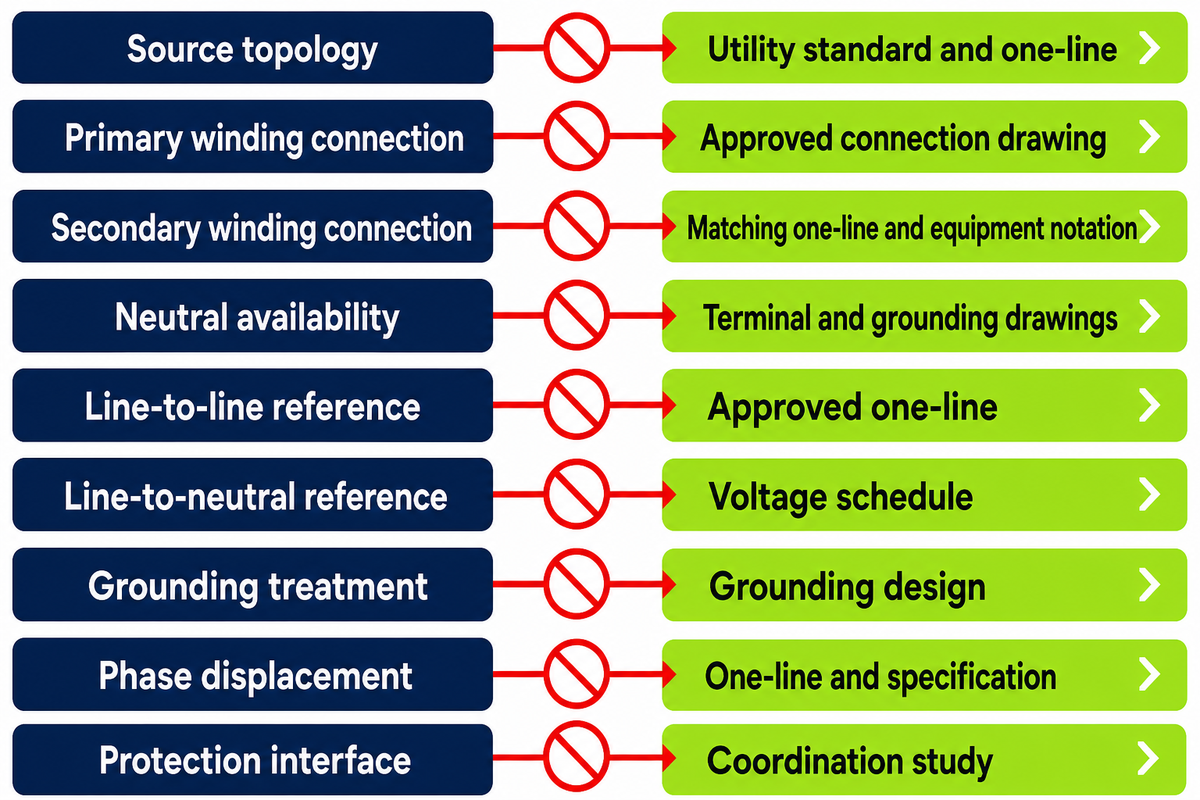

Pole, pad, vault, and substation labels describe installation interfaces; none selects a winding connection or neutral scheme. Record mounting separately as an independent project field, then confirm the primary and secondary connections, voltage references, grounding, and phase displacement from controlled documents.
| Type description | Phase field | Mounting field | Limitations / Not suitable for |
|---|---|---|---|
| Source topology | Incoming phase and topology | A location label does not identify the incoming circuit | Use the utility standard and one-line; keep open until labeled |
| Primary winding connection | Primary delta, wye, or approved alternative | An enclosure does not state the connection | Use the approved connection drawing; do not infer |
| Secondary winding connection | Secondary winding family | Mounting does not define the secondary arrangement | Require matching one-line and equipment notation |
| Neutral availability | Neutral status and use | A pad or pole label does not expose a neutral | Use terminal and grounding drawings; mark unknown |
| Line-to-line reference | Primary and secondary L-L values | Mounting carries no rated voltage reference | Use the approved one-line; label both sides |
| Line-to-neutral reference | Required L-N value | Installation style does not prove a usable neutral | Use the voltage schedule; state the reference explicitly |
| Grounding treatment | System grounding decision | Civil interface and grounding are separate decisions | Use the grounding design; route to the engineer |
| Phase displacement | Approved vector notation | Physical location does not select displacement | Use the one-line and specification; copy the approved value |
| Protection interface | Fault and protection relationship | Mounting does not establish fault behavior or settings | Use the coordination study; no web inference |
The matrix is a connection-scope control, not a Talite product matrix. Civil access, clearance, drainage, and environmental duty belong in a separate installation review and do not select a connection. The U.S. Department of Energy distribution-transformer webinar transcript separately lists mounting, phase, kVA, primary voltage, and secondary voltage as configuration attributes.

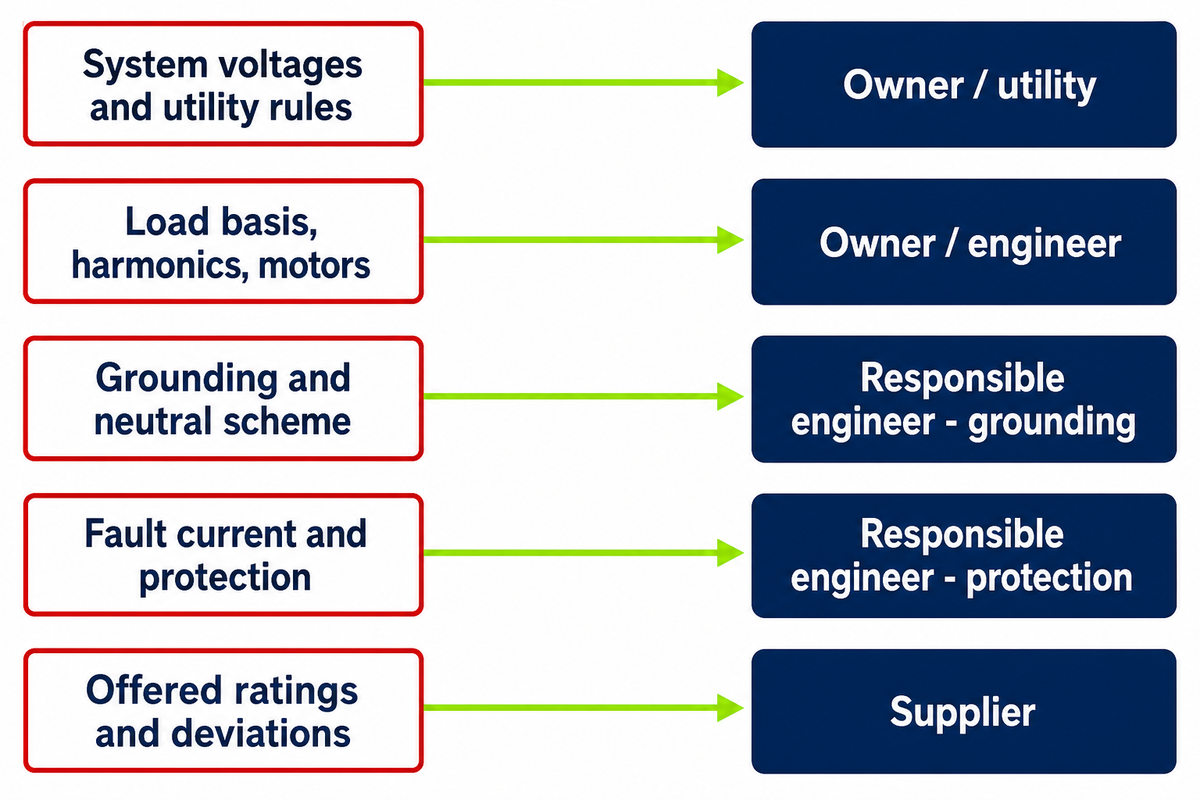

The owner or utility supplies governing system requirements, the responsible engineer confirms study-dependent decisions, and the transformer supplier confirms only the offered equipment data and documents. Grounding, fault current, impedance, inrush, power factor, and protective-device coordination must never be guessed from phase count or a sales description.
| Input | Primary confirmer | Required evidence |
|---|---|---|
| System voltages and utility rules | Owner / utility | Service standard and one-line |
| Load basis, harmonics, motors | Owner / engineer | Load schedule and study assumptions |
| Grounding and neutral scheme | Responsible engineer | Approved design |
| Fault current and protection | Responsible engineer | Coordination study |
| Offered ratings and deviations | Supplier | Data sheet and drawings |
Nonlinear or harmonic-producing loads can change the review, which is why IEEE C57.105 treats nonsinusoidal load application as a distinct engineering subject. Use the dedicated guides for transformer BIL requirements and distribution transformer protection inputs instead of compressing insulation and protection into one RFQ line.
Generic promises of efficient power or balanced power do not define a reviewable three-phase connection. A connection brief identifies source topology, unit-or-bank architecture, rated voltage references, winding connections, neutral and grounding decisions, phase displacement, responsible parties, and controlled documents before model, price, or delivery questions are released.
Do not release a purchase when the source topology, one-line revision, neutral and grounding treatment, load basis, utility acceptance, or protection responsibility is missing. There is also no universal “biggest disadvantage”: consequences vary between an integrated unit, complete bank, and approved special topology, as well as with outage, access, spare, and redundancy requirements. One public Division 26 specification illustrates why rated and connection fields belong in controlled project records rather than a generic comparison.

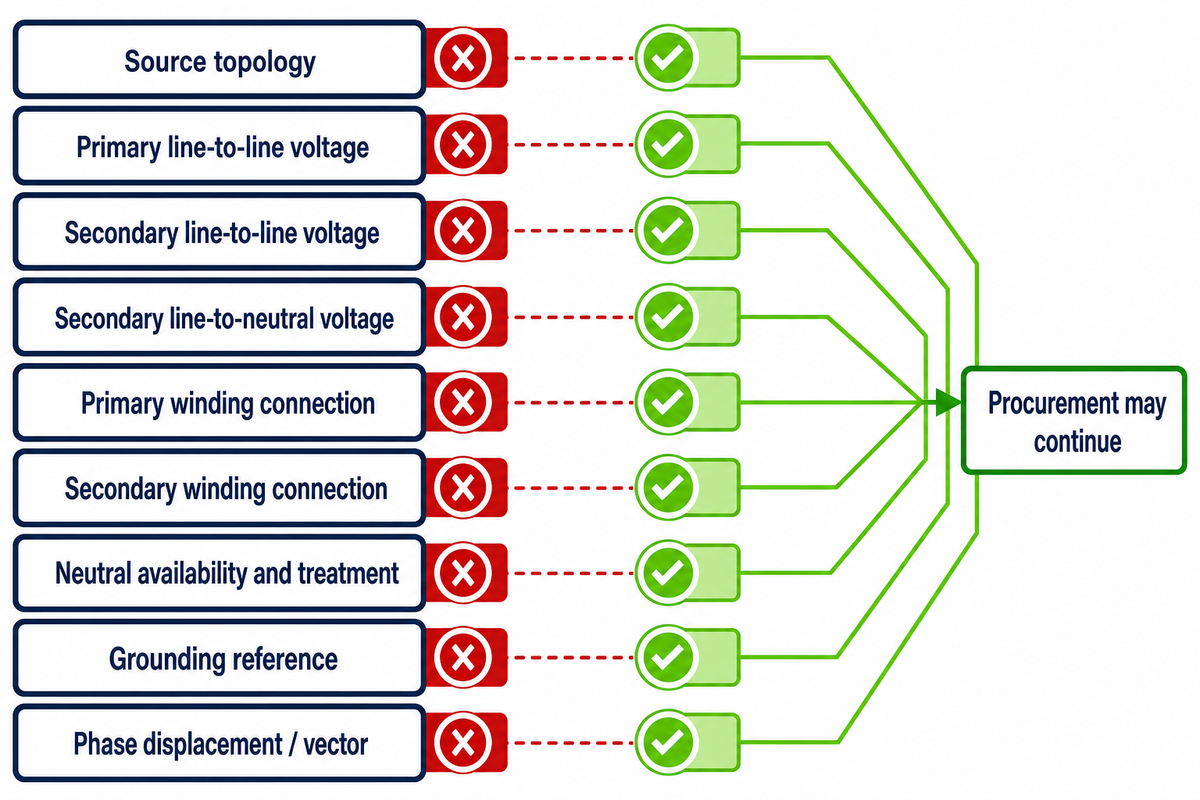

The Connection Brief Veto Queue blocks a connection decision whenever a required field is blank, conflicts across documents, or carries an unknown revision. Each row names the unresolved condition, the party that must clear it, the controlling evidence, and the point at which procurement may continue.
Connection Brief Veto Queue — resolve these connection fields before technical inquiry:
| Field | Owner | Controlling document | Release evidence | Limitations / Not suitable for |
|---|---|---|---|---|
| Source topology | Utility | Service standard and one-line | Accepted topology reference | Veto while the incoming system is unlabeled |
| Primary line-to-line voltage | Utility / engineer | One-line | L-L value labeled | Veto if the value or reference is missing |
| Secondary line-to-line voltage | Utility / engineer | Approved voltage schedule | One approved secondary L-L value; revisions agree | Veto when documents show different values |
| Secondary line-to-neutral voltage | Engineer / utility | One-line and load schedule | L-N value and need stated | Veto when the neutral reference is assumed |
| Primary winding connection | Engineer | One-line and specification | Approved notation matches | Veto when only a generic word or sketch exists |
| Secondary winding connection | Engineer / supplier | Approved drawing set | Terminal notation agrees | Veto when equipment and project drawings conflict |
| Neutral availability and treatment | Engineer / utility | Grounding and terminal drawings | Neutral status explicit | Veto when a common point is treated as approval |
| Grounding reference | Responsible engineer | Grounding design | Approved scheme identified | Veto when the method is inferred from a connection name |
| Phase displacement / vector | Engineer / utility | One-line and project specification | Approved value copied exactly | Veto when notation or revision is unknown |
Talite can review a supplied connection brief when buyers submit voltage and connection fields. The linked page does not by itself prove a requested rating, certification, connection, price, lead time, test result, or project outcome.
A 9-row veto queue is ready only when each connection field has the required controlling evidence and clear-to-proceed evidence. A public Division 26 specification is one example of controlled project fields; the Connection Brief Veto Queue is Talite’s editorial tool, not the university’s method.
According to company-provided background, Talite Transformer Co., Ltd. has worked in the power-equipment sector for more than three decades, was originally established as Jiangsu Fangteng Industrial Co., Ltd., and integrates research, production, and sales in Nantong, Jiangsu. This is first-party company context, not independent proof of any product claim.
Share the Connection Brief Veto Queue, approved drawings, utility requirements, and unresolved engineering inputs. Talite can review the offered equipment boundary without replacing the utility or responsible engineer.
Sources accessed August 31, 2026.
